ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps
Specifications
Brand Name :
JUNPU
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100000000
Delivery Time :
5-10 Days
Suitable For Outdoor Use :
Yes
Package Contents :
1 Fiber Optic Cable Clamp, screws
Adjustable :
No
Usage :
Holding fiber optic cables in place
Weight :
0.2 lbs
Application :
Fiber Optic Cable Installation
Size :
1 inch
Weatherproof :
Yes
Maximum Load Capacity :
50 lbs
Installation Method :
Screw-in
Quantity :
1 pack
Type :
Single Hole
Material :
Stainless Steel
Manufacturer :
Fiber Optic Solutions Inc.
Corrosion Resistance :
Yes
Description

ODWAC-22 Fiber Optic Drop Cable Wire Connection Clamps

Description

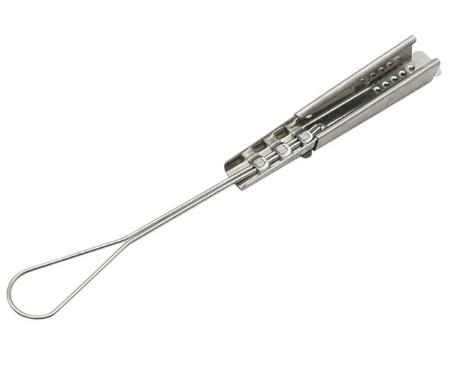

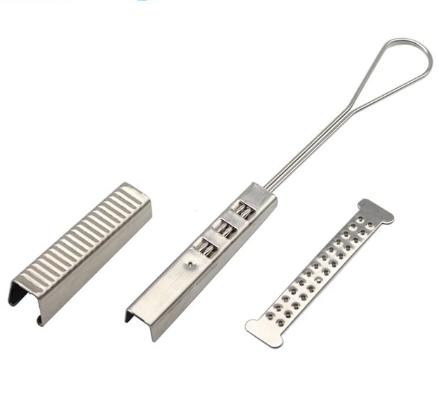

The fiber drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel. We offer this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps. All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test.

Features

  • Easy installation, tools free
  • High mechanical strength
  • Remove and don't hurt the cable jacket
  • Stainless steel and ABS material.
  • Applied with a drive hook, pole bracket, or other fittings
  • Excellent environmental stability
  • Competitive price

Model Cable Diameter(mm) Break Load (KN)
ODWAC-22 2*6mm 1KN
