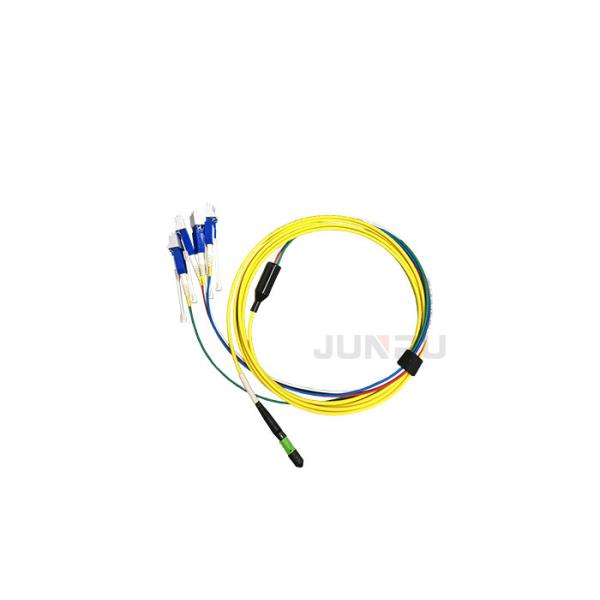

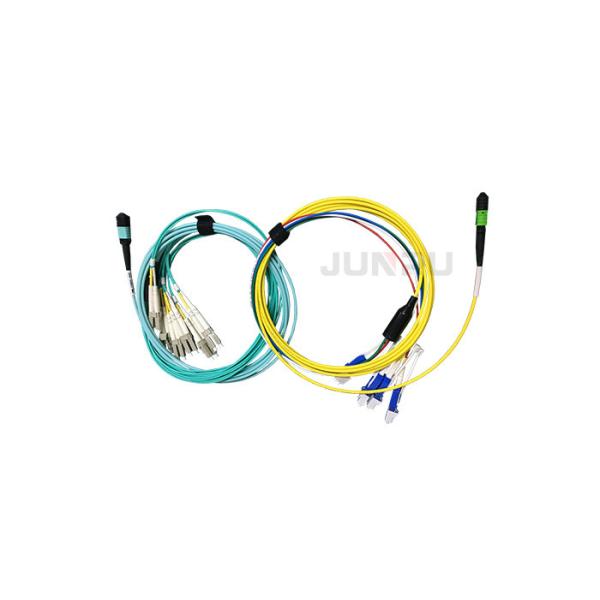

LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M
LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M
LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M
LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M
Specifications
Brand Name :
JUNPU
Model Number :
LC UPC mpo patch cord
Certification :
ROHS CE CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Supply Ability :
1000 pieces per week
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Product Name :
LC UPC Fan Out MM G657A2 G652D OM3 OM5 MPO Fiber Patch Cord SM 10M
Connector :
LC UPC
Fiber Mode :
Simplex and Duplex, G652D
Length :
1m, 2m, 3m, 5m
Jacket :
PVC/LSZH
Cable OD :
3.0mm, 0.9mm, 2.0mm
Application :
FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base station,For ODF internal link,For room equipment internal link,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Fan out length :
25",36" or customized
fanout protection :
pulling eye kits
Description

LC UPC Fan Out MM G657A2 G652D OM3 OM5 MPO Fiber Patch Cord SM 10M

Description:

MPO connector is one type of the fiber connector,which usually used for high speed transmission standard.

Such as the IEEE 802.3bm standard for transmission of 40G/100G etc., can be used in the data center.

Applications:

  • FTTH FTTB FTTX Network,
  • FTTA FTTH BBU RRU RRH LTE &
  • Base station,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments

Specification:

tems Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Durability <0.1dB typical change,
500 matings
Operating Temperature -40 to +75°C -40 to +75°C
Ferrule Hole Sizes 125.0+1/-0um, Conentricity:≤1um 125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um 127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um 128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /

LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M

LC UPC Fan Out MM Fiber Optic Patch Cord G657A2 G652D OM3 OM5 MPO SM 10M
