2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing
2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing
Specifications
Brand Name :
JUNPU
Model Number :
GJYXCH / GJYXFCH
Certification :
ROHS, CE, CCC
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
1000 Kilometer/Kilometers per Week 2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH
Delivery Time :
1 ~ 10 Working days based on the quantity
Packaging Details :
2KM /reel 2 core ftth drop cable
Application :
Telecommunication,outdoor aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber type :
G652D/G657A1/G657A2
Number of conductors :
2
Fiber count :
1 2 4 Core
Jacket material :
LSZH
Product Name :
2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH
Package :
2km/roll
Strength member :
FRP or Steel Wire
Description

2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH


Decsripttion

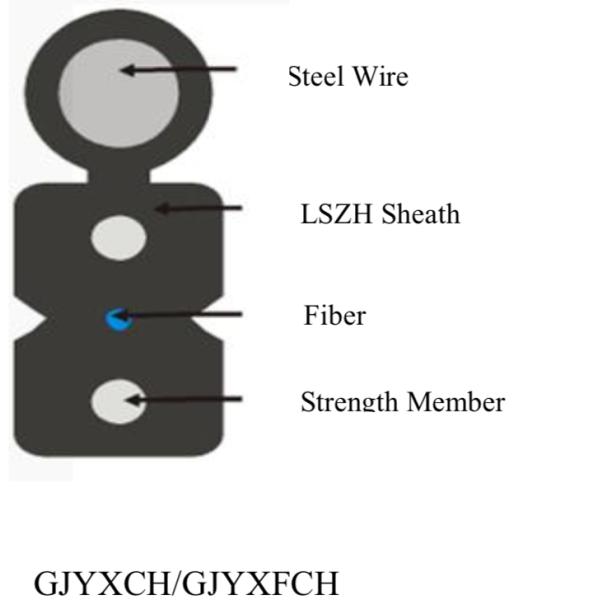

  • GJFXH The optical fiber unit is positioned in the centre. Two prallel strength member(FRP/Steel wire) are placed at the two side. Then the cable is completed with a black LSZH or PVC sheath.

2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing

Application

  • Indoor cable distribution;

  • Adapted to core network, access network and fiber to home.

Feature

  • Special low bend sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two prallel FRP strength memebers ensure good performance of crush resistance to protect the fibers.
  • Novel flute design,
  • Good moisture resistance, easily strip and splic, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath.

Optical Characteristics

Item

Description

Approx. Cable Diameter

(2.0×3.0)±0.1mm

Approx. Cable Net Weight

11kg/km

Strength Member

Material

FRP or Steel Wire

Outer Diameter

0.50±0.02mm/0.45±0.02mm

Optical Fiber

Type

ITU-T G .657 Fibers

Numbers

1/2/4

LSZH Sheath of Cable

Material

LSZH

Fiber Attenuation Coefficient in Cable

dB/km(1310nm)

≤0.4dB/km

dB/km(1550nm)

≤0.3dB/km

Cable Type

Tensile Strength (N)

Crush Resistance Strength (N/100mm)

Min. Bending Radius (mm)

Short Term

Long Term

Short Term

Long Term

Dynamic

Static

GJXFH

80

40

1000

500

20H

10H

GJXH

200

100

2200

1000

20H

10H

Operation Temperature:-40°C~+60°C

2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing
Package
2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing
2 Core Indoor Fiber Drop FTTH Optic Cable GJYXCH / GJYXFCH 2km /Roll Packing
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
