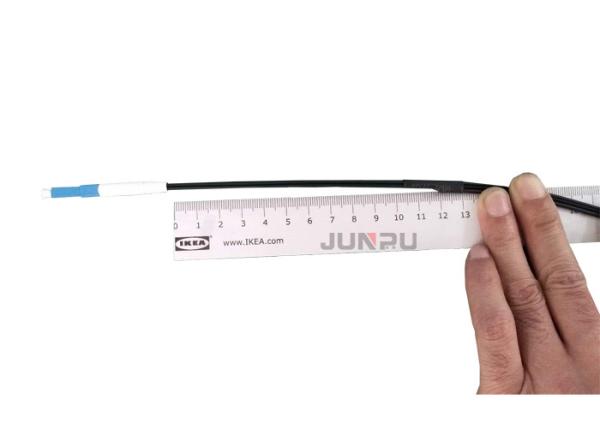

LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH
LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH
Specifications
Brand Name :
JUNPU
Model Number :
Fiber Optic Drop Cable Patch Cord
Certification :
ROHS CE CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Indoor Outdoor Fiber Optic Patch Cord G657a Ftth Drop Cable Patch Cord 1piece per plastic bag, 50pieces in a Carton box
Product Name :
LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH
Connector :
SC, LC
Fiber Mode :
Single Mode G657A
Length :
1m, 2m, 3m, 5m As Your Customeried
Jacket :
PVC/LSZH
Cable OD :
3.0mm, 0.9mm, 2.0mm
Messenger wire :
1.0mm Steel
Strength member :
2*0.5mm FRP
Description

LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH

Features:

1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .

2. The patch cord are factory terminated, assembled, tested and inspected prior to shipment.

3. All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

  1. Ceramic Ferrule;
  2. High return loss;
  3. Low insertion loss;
  4. Good repeat-ability and and ex-changeability;
  5. Excellent Polished and 100% tested
  6. Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications:

  • FTTH FTTB FTTX Network,
  • FTTA FTTH BBU RRU RRH LTE &
  • Base station,
  • For ODF internal link,
  • For room equipment internal link,
  • FTTH/Test equipments/TV/LAN/Telecommunication equipments

Specification:

G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH

LC 1 Core Ftth Fiber Optic Drop Cable Patch Cord LSZH GJYXFCH
