Specifications
Brand Name :
JUNPU or OEM
Model Number :
Duplex Singlemode G675A2 Fiber Optic Pigtail SC APC
Certification :
ROHS CE CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Supply Ability :
100000 pieces per week
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Product Name :
SC APC - SC PC Duplex Fiber Optic Patch Cord
Connector :
SC APC - SC PC
Fiber Mode :
G652D/G657A1/G657A2
Length :
1m, 2m, 3m, 5m As Your Customeried
Jacket :
LSZH
Cable OD :
3.0mm, 0.9mm, 2.0mm or optional
Application :
Data Center
Fiber counts :
Duplex
Ferrule end face :
APC or UPC
Description

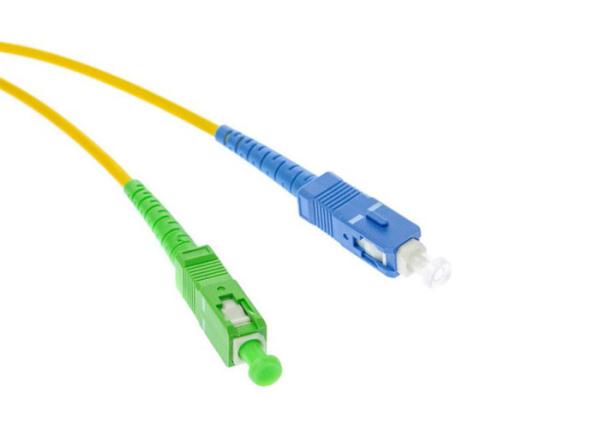

SC APC - SC PC Duplex Fiber Optic Patch Cord

Applications:

  • Testing equipment
  • FTTX+LAN
  • Optical fiber CATV
  • Optical communication system
  • Telecommunication

Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80

SC APC - SC PC Duplex Fiber Optic Patch Cord, fiber optic patch cable

SC APC - SC PC Duplex Fiber Optic Patch Cord, fiber optic patch cable
