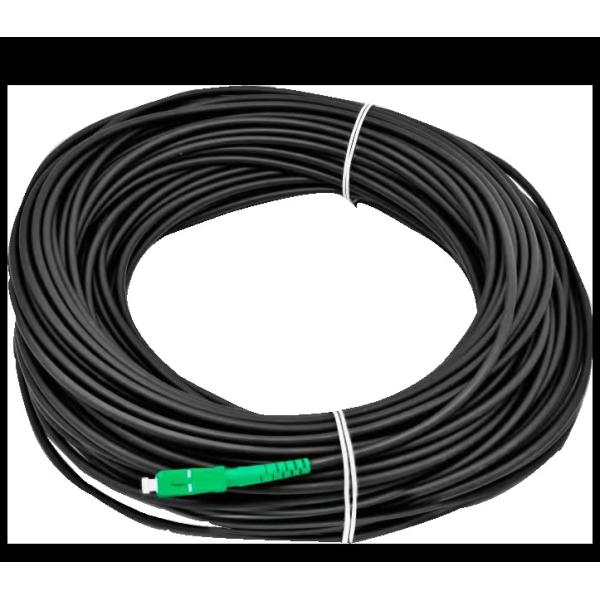

Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector
Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector
Specifications
Brand Name :
JUNPU
Model Number :
GYTS
Certification :
ROHS, CE, CCC
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
30000 Kilometer/Kilometers per Week anti-rodent 6 core optical fiber cable GYTS
Delivery Time :
1 ~ 10 Working days based on the quantity
Packaging Details :
wooden reel of anti-rodent 6 core optical fiber cable GYTS
Application :
Telecommunication,outdoor aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber type :
G652D,OM3,G657A2,50/125,62.5/125
Number of conductors :
≥ 10
Fiber count :
4 ~ 192 Core
Jacket material :
PE,LSZH
Product Name :
GYTS 48 Core Armored Fiber Optic Cable Outdoor
Laying method :
aerial and pipeline laying method
Package :
2km/roll
Description

Outdoor Fiber Optic, Fiber Optic Cables G657A2 Aerial Drop Cable With Pre-Connector


Decsripttion

  • GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
  • Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.

Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector

Features

  • Steel wire strength filler protect tube fiber.steel tape armored.
  • Good ultra violet radiation resistant property.
  • Good moisture-resistance.

Application

  • Mainly adopted to direct buried, duct and cable trench.

Optical Characteristics

No.

Characteristics

Parameter value

1

Tensile Strength

Short Term

1000N

Long Term

500N

2

Crush Resistance Strength (N/100mm)

Short Term

1000N

Long Term

300N

3

Min. Bending Radius (mm)

Dynamic

20D

Static

10D

4

Temperature Range

-40~+60°C

Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector
Package
Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector
Outdoor Fiber Optic, fiber optic cables G657A2 aerial drop cable with pre-connector
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
