OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
Specifications
Brand Name :
JUNPU
Model Number :
OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
Certification :
ROHS CE CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Product Name :
OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord
Connector :
SC, LC, FC
Fiber Mode :
Singlemode
Length :
1m, 2m, 3m, 5m As Your Customeried
Jacket :
LSZH
Fiber count :
Duplex
Color :
Lime Green
Description

OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord

Specification:

OM5 Multimode Wideband 2.0mm LSZH LC/UPC to LC/UPC Fiber Optic Patch Cable

OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord

OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-953nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Specification:

Model Number:
Fiber Optic Patch Cord
Connector Type:
LC/UPC to LC/UPC Duplex
Use:
FTTX
Length:
Customized
Place of Origin:
Hangzhou, China
Brand:
OEM/ODM
Fiber Type:
50/125 OM5
Fiber count:
Duplex
Wavelength:
850/1300nm
Fiber Grade:
Bend Insensitive
Insertion loss:
≤0.3dB(UPC/PC)
Return loss:
UPC/PC ≥35
Min. Bend Radius
(Fiber Core)
7.5mm
Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)
40G Ethernet Distance
440m at 850nm
100G Ethernet Distance
150m at 850nm
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Effective Modal Bandwidth
(at 850nm)
≥4700 MHz·km
Effective Modal Bandwidth
(at 953nm)
≥2470 MHz·km
Cable Jacket:
LSZH
Jacket Color:
Lime Green...Customized
Cable Diameter
2.0mm
Laying Method:
Indoor cabling
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patch cord

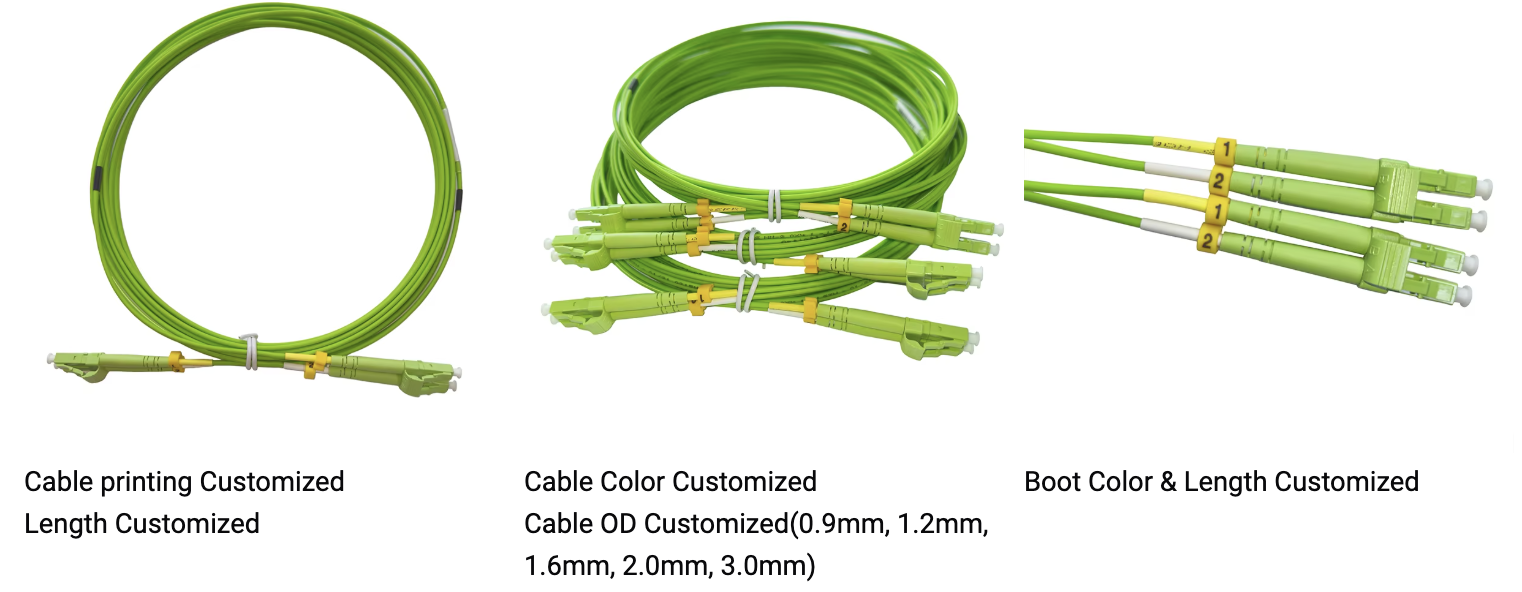

OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord

Other Patch Cord Series:

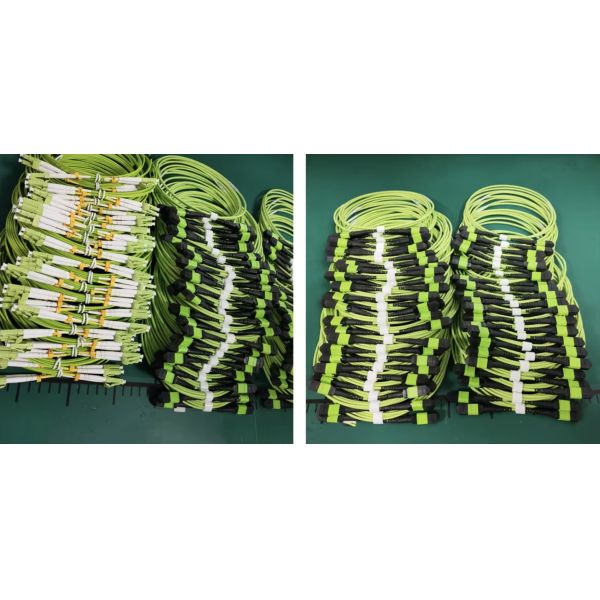

OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord

About Our Company

OM5 LC Fiber Optic Patch Cord Multimode Duplex LSZH Jacket 2.0mm 5M LC Patch Cord

We sincerely invite you to send us an inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You!
