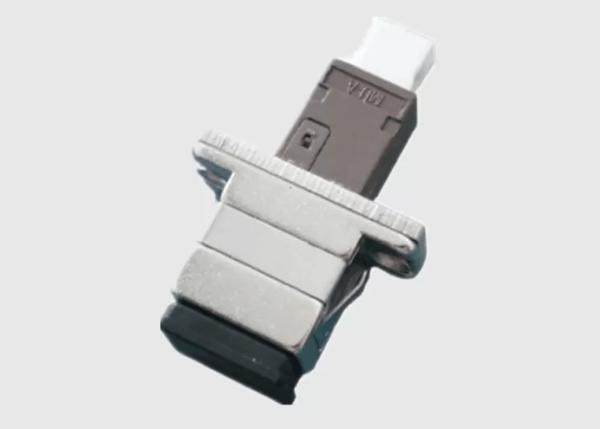

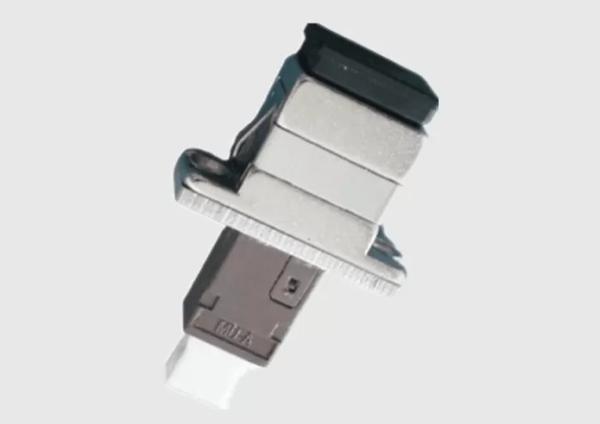

SC To MU Hybrid Optic Adapter
SC To MU Hybrid Optic Adapter
SC To MU Hybrid Optic Adapter
SC To MU Hybrid Optic Adapter
Specifications
Brand Name :
YT
Model Number :
FC-SC adapter
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
SC To MU Hybrid Optic Adapter
Mode Type :
Simplex, Duplex
Connector Type :
FC Male To LC Female
Adapter Insert Material :
Zirconia/Ceramic, Metal
Housing Material :
Metal, Plastic
Insertion Loss :
0.2dB
Fiber Counts :
Simplex
Adapter Mounting Type :
Reduced Flange
Description

SC Female To MU Female Simplex Fiber Optic Cable Adapter


Product Overview:

SC To Mu Female to adapter is the female to female type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fiber optic adapters can reduce the optical light power at a fixed level,Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same
as attenuators and are used inline.

Optic Adapter Specification & Technology Parameters:

Item Value Unit
Sleeve Material Ceramic /
Insertion Loss Male Typ. ≤ 0.5 dB
Min. ≤ 0.2 dB
Female Typ. ≤ 0.3 dB
Min. ≤ 0.2 dB
Return Loss UPC ≥50 dB
APC ≥60 dB
PC ≥35 dB
Insertion Loss Max. 0.2 dB
∆ IL Uniformity ＜0.2 dB
Durability (1000 times) ＜0.3 dB
Proof Test 40N,10 minute N
Insertion And Withdrawal Force ≤19.6N N
Operating Temperature -25~+70 ℃
Storage Temperature -25~+70 ℃
Protocol Standards IEC60874-10/61300/TIA/EIA568

Optical Cable Adaptor Feature and Benefits:

​

  1. High precision alignment sleeve
  2. Low insertion loss and high reconnect ability
  3. Male to Female fiber connector types
  4. High performance
  5. Broadband coverage
  6. Complied with Telcordia (GR-910-CORE and GR-1221-CORE)

Fiber Optic Adapter Applications:

  1. Power management in optical networks
  2. Wavelength division multiplexing(WDM) system channel balancing
  3. Erbium Doped Fiber Amplifiers (EDFA)
  4. Optical add-drop multiplexers(OADM)
  5. Receiver protection
  6. Test equipment
  7. Compensation of different connector attenuation
