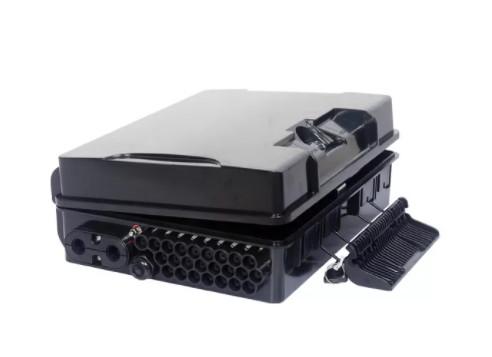

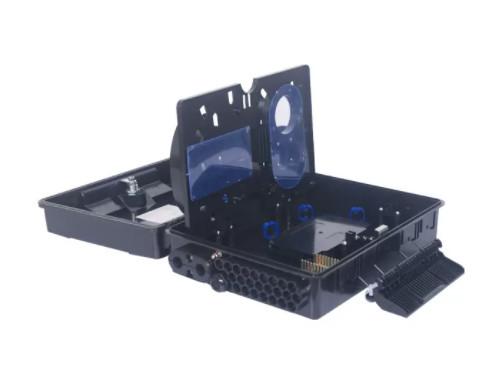

IP65 SMC Fiber Optic Junction Box
IP65 SMC Fiber Optic Junction Box
IP65 SMC Fiber Optic Junction Box
IP65 SMC Fiber Optic Junction Box
Specifications
Brand Name :
YT
Model Number :
type D
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Material :
PC+ABS+PE
Core :
24 Core
Out cable size :
2.0 4.2 4.6 4.8 mm
Into cable size :
7.0~12.5mm
Cable ports :
2 Into 24 Out
Protection Rating :
IP65
Description

24 Core Black Fiber Optic Distribution Box Pole Installation PC ABS SMC

Description:
Fiber access termination closure is able to hold up to 16subscribers and 96splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Specifications:
Item KXT-A-24B
Size(HxWxD)mm 340x220x95
Out Cable diameter(mm) 0.9 , 2.0 , 3.0 , 4.2 , 4.8
Cable ports 24
Adapter ports 24
Max capacity of splice 96
Suitable Adapter FC,SC,LC,E2000
Materials PC
EnvironmentalTemperature(℃) －40～80

Features:
1. Water-proof design with IP-65 Protection level.
2. Integrated with splice cassette and cable management rods.
3. Manage fibers in a reasonable fiber radius condition.
4. Easy to maintain and extend the capacity.
5. Fiber bend radius control more than 40mm.
6. Suitable for the fusion splice or mechanical splice.
7. 1*16 Splitter can be installed as an option.
8. Efficient cable management.
9. 24 ports cable entrance for drop cable

Applications:
·Wall mounting and pole mounting installation
·FTTH pre-installation and filed installation
·2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable


Standard Accessories:
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.
