PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
PVC LSZH Jacket Single Mode Fiber Jumpers 0.3dB Insertion Loss Optical Jumper Cord
Specifications
Brand Name :
YT
Model Number :
RP-SC-SCA-S-S
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Dimension :
0.9mm/2.0mm/3.0mm
Ferrule end -face :
UPC/APC
Jacket material :
PVC/LSZH/PE
Fiber type :
Singlemode
Insertion loss :
≤0.3dB
Connector Type :
SC/UPC-SC/APC
Description

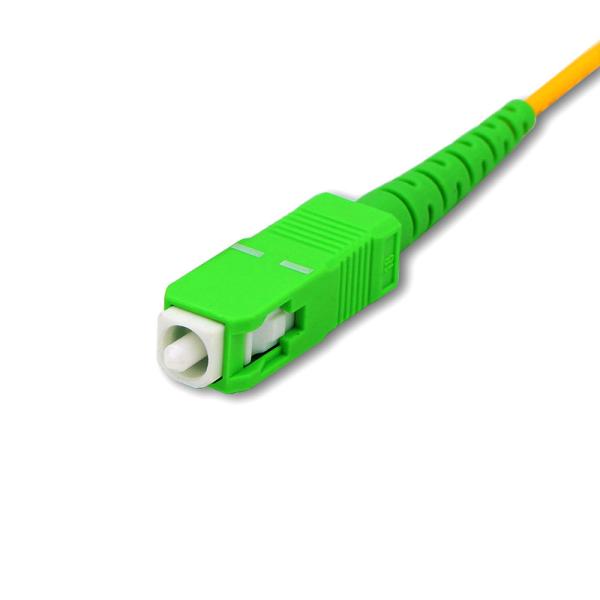

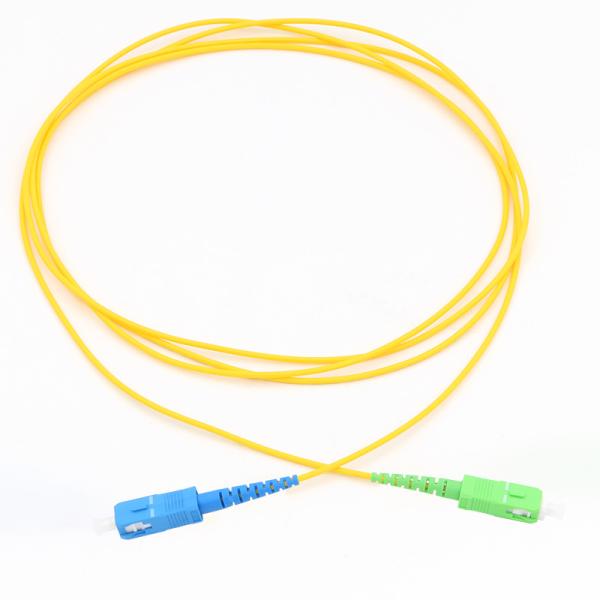

SC/UPC-SC/APC Singlemode Simplex 9/125 outdoor fiber optic patch cord / jumper

Specification

Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile strength > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

Ordering options

Boot (cable size) Cable Color Fiber Type Cable number Ferrule Length

0.9mm

2.0mm

3.0mm

Yellow

Orange

Aqua

Violet

Rose

Green

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

PC

APC

Customized

Application

1. Gigabit Etherenet

2. Active dvice termination

3. Telecommunication networks

4. Vidio

5. Multimedia

6. Industrial

7. Military

8. Premise installations.

Feature

Low insertion loss and back reflection loss

Good exchangeability

Good Durability

High temperature stability.

Standard: Telcordia GR-326-CORE

Why choose us?

  1. Quality system of ISO900,CE,FCC,ROHS registration
  2. Manufacture system
  3. R&D system
  4. Purchasing system
  5. Prompt delivery and remarkable services
  6. Reasonable prices
  7. Accept orders according to customer's demands
  8. Rich experience of OEM & ODM co-operation
  9. Shipment,payment and delivery
