Duplex LC Optical Fiber Jumper
Duplex LC Optical Fiber Jumper
Duplex LC Optical Fiber Jumper
Duplex LC Optical Fiber Jumper
Duplex LC Optical Fiber Jumper
Duplex LC Optical Fiber Jumper
Specifications
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Product Name :
Simplex/duplex Fiber Optical Patch Cord
Core :
Simplex,Duplex,Bunch type,Ribbon type
Ferrule End-face :
PC, UPC, APC
Cable Diameter :
Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length :
1, 2, 3 Meter Or Customized
Jacket material :
OFNR,LSZH ,OFNP
Description

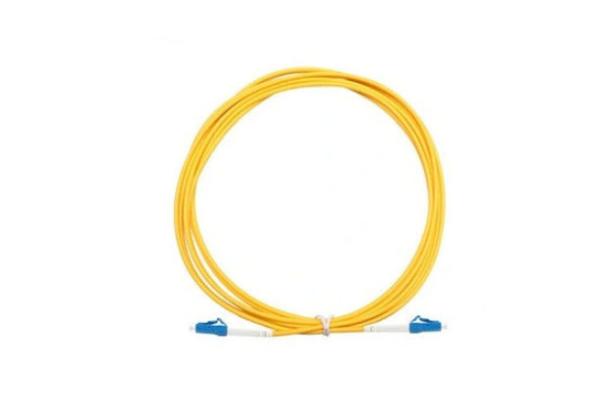

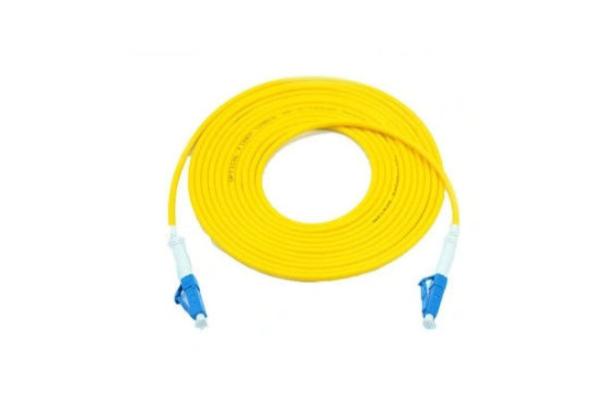

Durable Simplex / Duplex LC Fiber Optical Patch Cord , PVC / LSZH Sheath

Product description

★ Jacket material:OFNR,LSZH ,OFNP
★ Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
★ Connectors:¢0.9mm,¢2.0mm,¢3.0mm
★ Compatible with ROHS

Technical parameter

Characteristic SM , MM

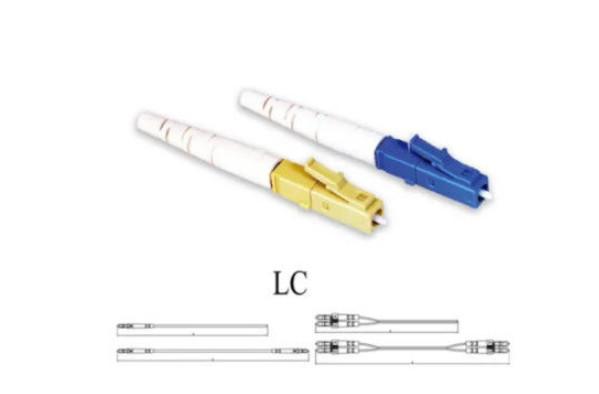

Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.3dB ≤0.2dB ≤0.3dB
Return loss ≥40dB ≥50dB ≥65dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40~+80

Fiber Type

★ Optional Fiber Cable can choose from:OS2,OM2,OM1,OM3,OM4

Packaging

★ Polybags packing for each
★ Packing with label

Technical Specifications

★ Insertion Loss Rate Compatible with IEC 61300-3-4
★ Return Loss Rate Compatible with IEC 61300-3-6
★ End face Geometrical size
UPCcurvityradius :10 ~ 25mm APC curvityradius:5 ~ 12mm
Apex offset:0 ~ 50um Apex offset:0 ~ 50um
Fiber dent:+50 ~ -100 Fiber dent:+50 ~ -100

Environmental Technical Requirements/ PRODUCT

Transport & Storage environment: -40ºCto+85ºC
Operation environment: -20ºCto+75ºC
