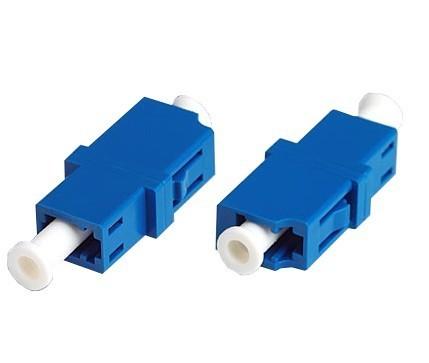

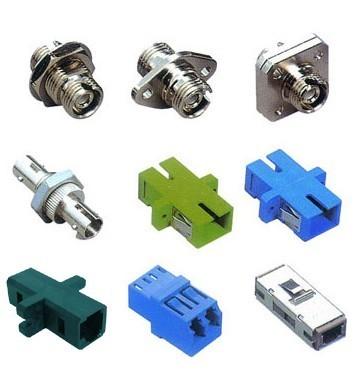

SC/FC/ST/LC/MU/MTRJ Fiber Optic Adapter 0.20dB
SC/FC/ST/LC/MU/MTRJ Fiber Optic Adapter 0.20dB
SC/FC/ST/LC/MU/MTRJ Fiber Optic Adapter 0.20dB
SC/FC/ST/LC/MU/MTRJ Fiber Optic Adapter 0.20dB
Specifications
Brand Name :
Sea Dragon
Model Number :
LC SM adaptor
Place of Origin :
hebei china
MOQ :
>1000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Day Fiber optic adapter
Delivery Time :
7 days
Use :
FTTH
Durability :
0.20dB typical change,1000matings
Housing color :
Beige Blue Green Aqua
Type :
LC Optical Adaptor, Adaptor
Color :
Beige,blue,green,aqua
No. of Fiber :
2
Insertion Loss :
0.20dB
Operating Tempera :
-40 to +85
Material :
plastic and metal
Application :
FTTH system
Description
Features:
• Low insertion loss and back reflection loss
• High precision alignment
• Compact design
• With/without flange
• Choice of housing material and sleeve material
• Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
• Simplex, Duplex,
Applications:
• CATV
• Telecommunication networks
• Metro
• Active device/Transceiver
• Multimedia
• Gigabit Ethernet
• Local Area Networks(LANs)
• Test equipment
• Data processing networks
Ordering Options:
Housing Color
Housing Option
Sleeve Materials
Channel
Application
Flange
Beige
Plastic
Zirconia
Simplex
PC
With
Blue
PB
Duplex
APC
Without
Green
Quadplex
Specifications:
Item
Specification
Insertion Loss
≤0.20dB
Durability
≤0.20dB typical change,1000matings
Operating Temperature
-40°C to +85°C
Optical fiber connector is a detachable (movable) connection device between optical fiber and optical fiber. It connects the two end faces of optical fiber precisely, so that the light energy output from the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent, and the impact on the system caused by its intervention in the optical link is minimized. This is the basic requirement of the optical fiber connector. To a certain extent, optical fiber connector affects the reliability and performance of optical transmission system.
