ABS Shell SC 125um Quick Field Assembly Optical Connector Pre Embedded
ABS Shell SC 125um Quick Field Assembly Optical Connector Pre Embedded
ABS Shell SC 125um Quick Field Assembly Optical Connector Pre Embedded
ABS Shell SC 125um Quick Field Assembly Optical Connector Pre Embedded
Specifications
Brand Name :
Sea dragon
Model Number :
SC FC LC UPC APC
Certification :
ISO9001 quality management system certification
Place of Origin :
hebei china
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Place of Origin: :
Hebei, China
Brand: :
Xuehai
Model: :
SC
Fiber type: :
SM/mm
Surface polishing: :
SC/UPC, SC/APC
Insertion loss: :
≤0.3dB
Return loss: :
≥60dB (SC / UPC), ≥60dB (SC / APC)
Joint endurance: :
10 times
Shell material: :
ABS
Application range: :
2.0/3.0 or FTTH jumper
Fiber diameter: :
125um
Tensile strength: :
> 20N
Description

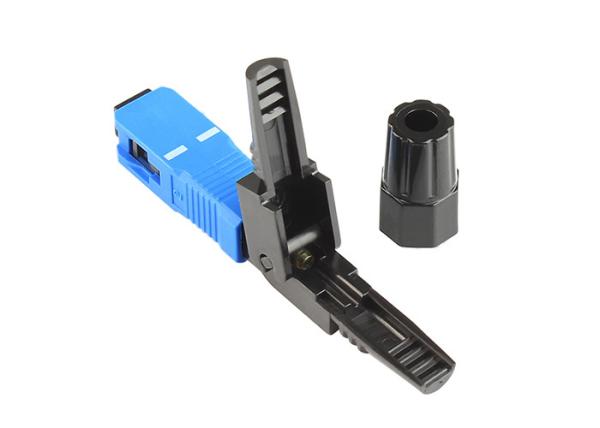

Pre-Embedded FTTH Optical Fiber Drop Cable SC Quick Field Assembly Connector
Product Description:
Our SC quick connectors make fiber optic termination fast, easy and reliable. The termination of these fiber optic connectors is trouble-free, and does not require epoxy resin, polishing, splicing, heating, and can achieve excellent transmission parameters similar to standard polishing and splicing techniques. Our quick connectors can greatly reduce assembly and setup time. The pre-polished connectors are mainly used directly for FTTH cables in FTTH projects at the end user's site.

Place of Origin: Hebei, China

Brand:

Xuehai

Model:

SC

Fiber type:

SM/mm

Surface polishing:

SC/UPC, SC/APC

Insertion loss:

≤0.3dB

Return loss:

≥60dB (SC / UPC), ≥60dB (SC / APC)

Joint endurance:

 10 times

Shell material:

ABS

Application range:

2.0/3.0 or FTTH jumper

Fiber diameter:

125um

Tensile strength:

 > 20N

Locking strength:

 0.2 dB

ABS Shell SC 125um Quick Field Assembly Optical Connector Pre Embedded

Features:

1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE

FAQ:

1. Q: What kind of cable do you produce?
We specialize in producing lan cable,patch cord,fiber cable,network cabinet,accessories etc.

2. Q:what's your MOQ?
A: Our MOQ is 1000 pieces per item. Free samples can be sent for your quality evaluation.

3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.

4. Q: What are your payment terms?
We accept T/T, L/C. Western Union, Pay via alibaba assurance order. Other payments accept through negotiation.

5. Q: What is your manner of packing?
The color box and cartons,It can as the customers'requests.
