Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m
Specifications
Brand Name :
DAMU or OEM
Model Number :
PLC WO 1*8 W
Place of Origin :
CHINA
MOQ :
2PCS
Supply Ability :
20000PCS/DAY
Packaging Details :
BLISTER/PLASTIC BAG/CARTON/PALLET
Center Wavelength :
1310nm/1490/1550nm
CAPACITY :
1*8
FIBER :
G657
LENGTH :
1/1.5M
COLOR :
WHITE
CONNECTOR :
NO
Description

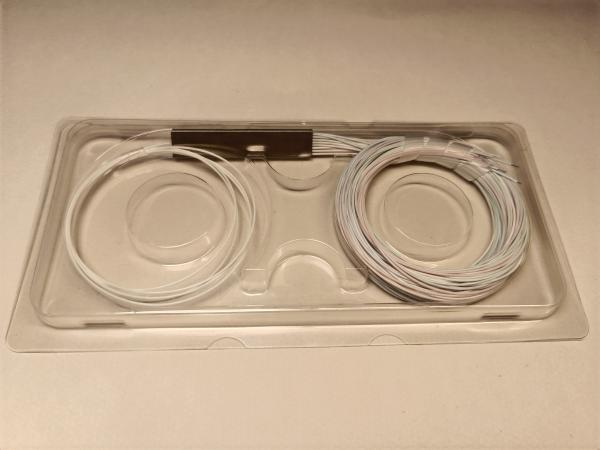

1x8 bare splitter mini tube PLC 250um 0.9mm white color transparency 1/1.5meter

Features

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Bare 1x8 PLC Splitter Mini Tube 250um 0.9mm White Color Transparency 1m 1.5m

Specification

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.5 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) ≥55
Return Loss (dB) UPC ≥55 APC ≥60
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW) 300
