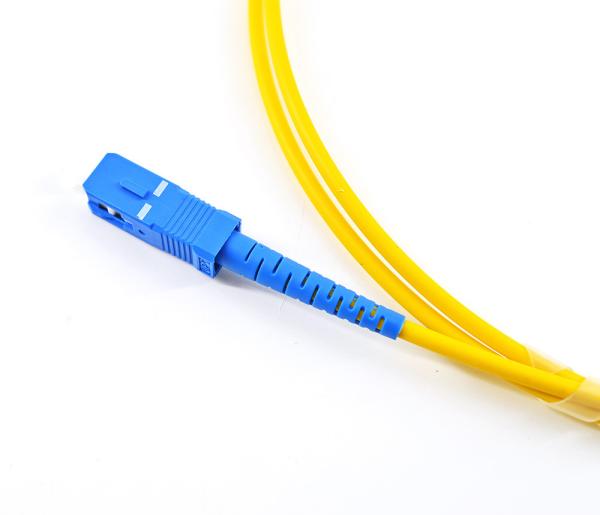

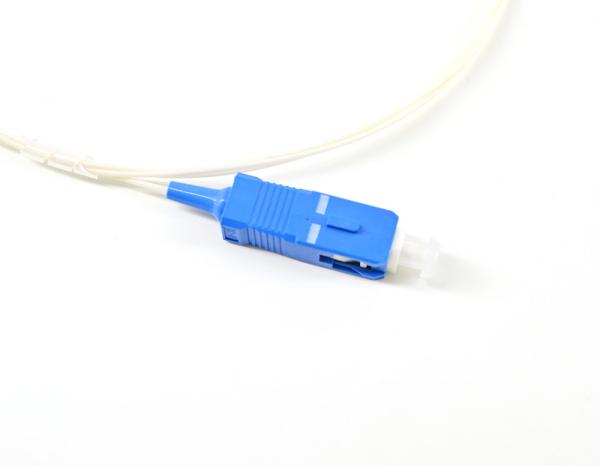

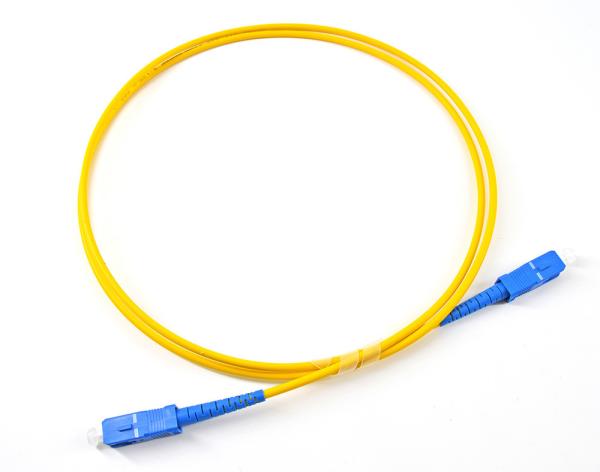

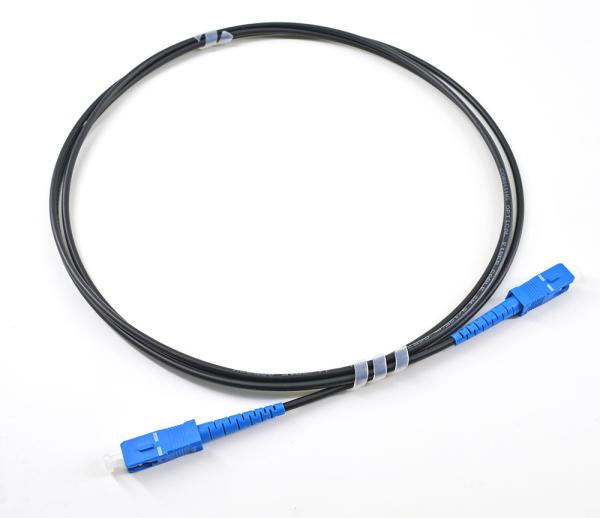

Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
Specifications
Brand Name :
Hanxin
Model Number :
SCPC-SCPC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PCS per day
Delivery Time :
3-7 workding days according to the qty
Packaging Details :
PP bag and carton
Jacket Color :
Yellow or Customized as you need
Jacket Material :
PVC/LSZH
Length :
Customized as you need
Fiber :
G652D/G657A1 and so on
Diameter(mm) :
0.9,2.0,3.0
Characteristic :
SM , MM
Description

Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss

1. Fiber Optic Patch Cord Features

  • Compliance with the Standard of IEC and YD/T1272
  • High Return Loss and Low Insertion Loss
  • Good Repeatability and Interchangeability
  • PC,UPC,APC Polishing
  • Single mode,Multi-Mode Versions
  • Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO,E2000,etc
  • Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable
  • Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6 Cores,12 Cores,24 Cores, 48 Cores

2. Specification

Characteristic SM , MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.4dB ≤0.2dB ≤0.3dB
Return loss ≥40dB ≥50dB ≥65dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature (℃)

-40~+85

Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss

Simplex Single Mode Fiber Optic Patch Cable SCPC - SCPC Low Insertion Loss
