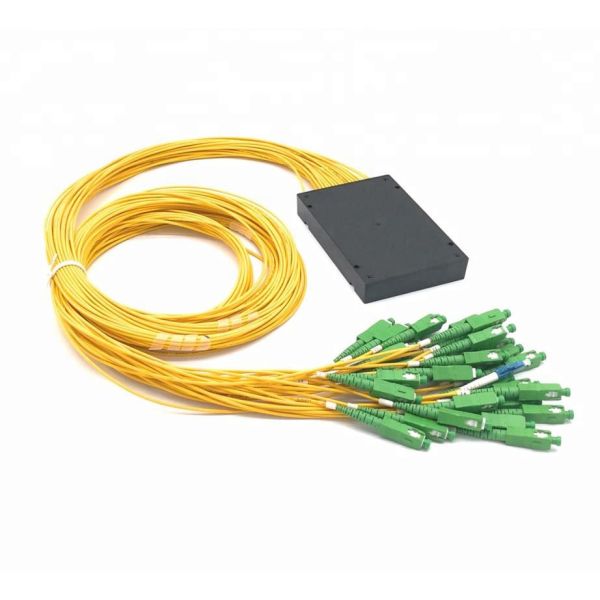

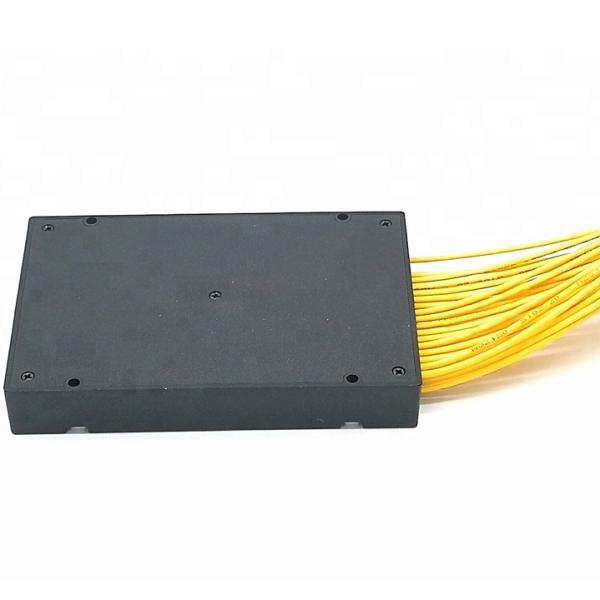

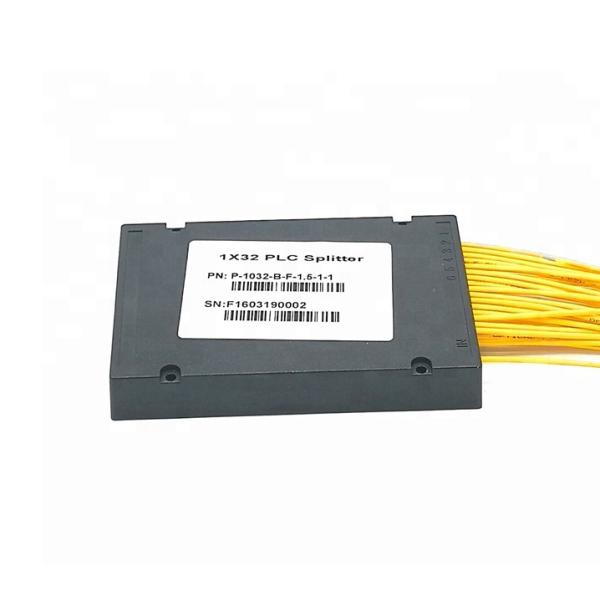

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector
Specifications
Brand Name :
hanxin or OEM
Model Number :
1*32 ABS box splitter
Certification :
ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000PCS Per month
Delivery Time :
3-15 working days
Packaging Details :
pp bags or plastic box
Cable diameter :
2.0mm or customized
Type :
1*2/1*4/1*8/1*16/1*32/1*64
Application :
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution
Connector type :
SCAPC
Wavelength :
1260-1650nm
Fiber length :
Customized
Description

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Fibercan provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Technical specifications

Wavelength(nm) 1260-1650
Parameters 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32
Insertion Loss(with connector)(dB) ≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤17.7
Insertion Loss(W/O connector)(dB) ≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤18.2
Uniformity (dB) ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4

Size(bare bype)

(H×W×L)(mm)

 4×4×50 4×7×50 4×12×60 4×4×50 4×7×50
Return Loss(dB) >50
Directivity(dB) >55
Temperature Range(°C) -40~+75
Storage Temperature(°C) -40~+85

Notes:

1. Specified without connectors.

2. Add an additional 0.2dB loss per connector

Key Features

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C - 85°C

7) High Reliability and Stability

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

Application

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution

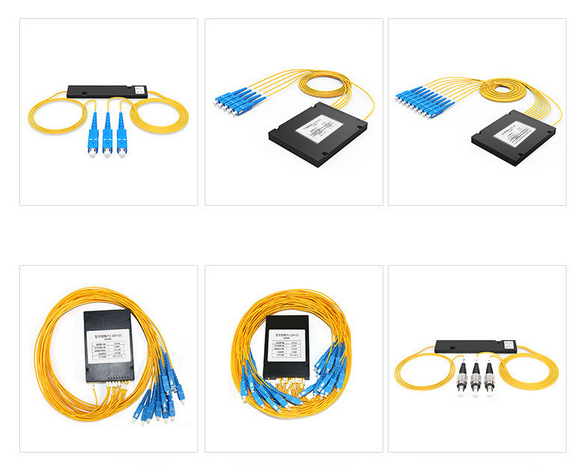

Other models
