Portable Handheld Video Microscope 200g For Fiber Optic Connector / Face Inspection
Portable Handheld Video Microscope 200g For Fiber Optic Connector / Face Inspection
Specifications
Model Number :
Handheld Video Microscope
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Name :
Handheld Video Microscope
Description

Handheld Video Microscope

Function

  • FC/SC/ST/E2000/LC/MU/MPO compatible
  • 3.5-inch TFT display
  • Up to 250x overall magnification
  • 4x digital zoom
  • SD card storage up to 8G
  • Snapshot, video recording and playback
  • PC plug-and-play

Description

  • Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

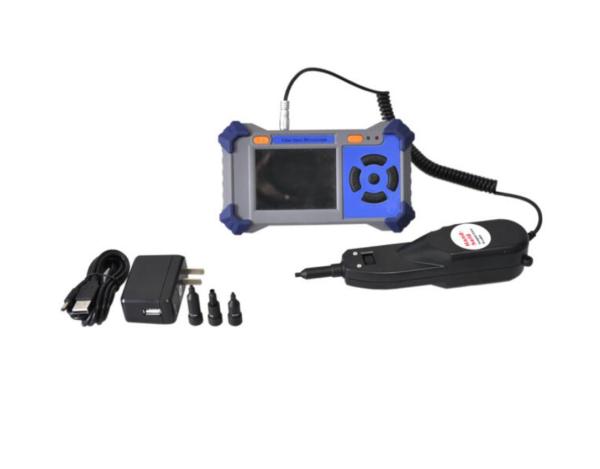

  • This is a handheld microscope specifically designed for fiber optic connector end face inspection.

Specification

Model Handheld Video Microscope
Display 3.5” TFT-LCD, 320 x 240 pixels
Dimensions 170mm x 100mm x 40mm
Weigh(including battery) 200g
Power Supply Replaceable battery or universal input 5V DC adapter
Battery Rechargeable Li-Ion, 3.7V / 1450mAh
Battery life > 3 hours (continuous)
Charger/AC adapter US, EU, UK and Australian versions available
Image / Video Storage 8GB SD card
Operating Temperature -20°C to 50°C
Storage Temperature -30°C to 70°C
