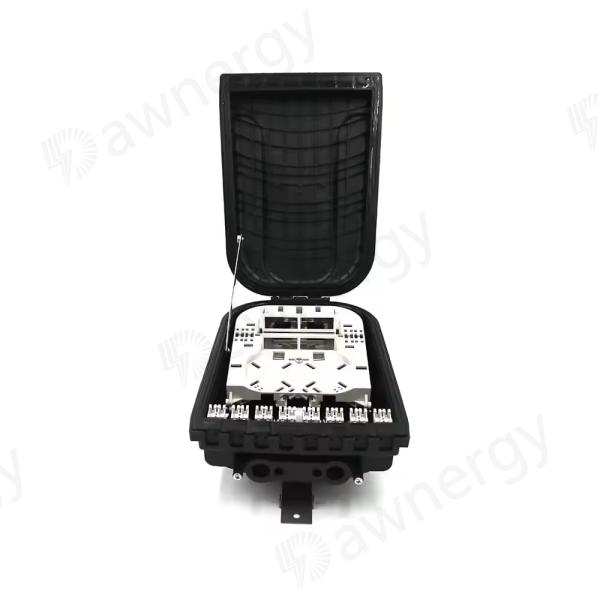

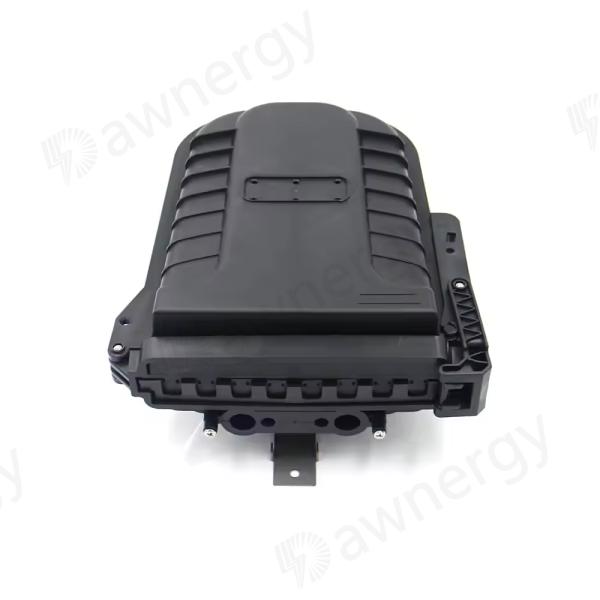

DA-FDB-16G-PA-12 Fiber Optic Distribution Box
DA-FDB-16G-PA-12 Fiber Optic Distribution Box
DA-FDB-16G-PA-12 Fiber Optic Distribution Box
DA-FDB-16G-PA-12 Fiber Optic Distribution Box
Specifications
Brand Name :
Dawnergy
Model Number :
DA-FDB-16G-PA-12
Place Of Origin :
China
Certification :
CE/FCC/RoHS/ISO9001
MOQ :
1000
Packaging Details :
Carton/Pallet
Delivery Time :
7-14 Day
Payment Terms :
D/A,L/C,D/P,T/T
Function :
FTTH FTTX System
Splice tray capacity :
16 Cores
Ports :
8 Ports/16 Ports
Dimension (mm) :
316*250*126
Max. Splice tray :
1pc
Description

DA-FDB-16G-PA-12 Fiber Optic Distribution Box

Dawnergy’s DA-FDB-16G-PA-12 fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

DA-FDB-16G-PA-12 Fiber Optic Distribution BoxDA-FDB-16G-PA-12 Fiber Optic Distribution Box

Features

l The body is made of high-quality engineering plastic with good strength

l IP65 Protection Lever

l The box can be opened easily and has good water-proof performance, suitable for outdoor natural environments

l With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated

l The drop leaf can be installed 1*8 or 1*16 mini-PLC splitter


Applications

l FTTH Solutions

Specifications

Environmental requirement

l Working temperature:-40℃～+85℃

l Relative humidity:≤85%(+30℃)

l Atmospheric pressure:70KPa～106Kpa

Thunder-proof technical datasheet

l The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500V(DC)；IR≥2 MΩ/500V

l The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V


Material

Protection Lever

Size (mm)

Max Tray Capacity

Suitable PLC Splitter Type

Cable Ports

Input

Output

PP+GF

IP65

305×216

×107

16f splicers and 16pcs SC adapters

2pcs 1x8 or 1pc 1x16 mini type PLC

4ports for main cable,

each for 1 cable with max 12mm.

16ports for drop cable, each for diameter 3mm

or 3x2mm drop cables









Ordering Information

DA-FDB-16G-PA-12

Black; PP+GF; With the adaptor panel for max. 16 pieces of SC type adapter panel, 4ports for main cable and 16ports for drop cable; Suitable for 1x8 or 1x16 mini type PLC splitter, PLC splitter NOT included; Dimensions (mm): 305 x 216 x 107; Wall mounting accessories included.
