Spider Web Fiber Optic Cable with ITU-T G.657A1 Fiber, 0.4mm Steel Wire Support, and 2.6mm Steel Wire Strength Member
Spider Web Fiber Optic Cable with ITU-T G.657A1 Fiber, 0.4mm Steel Wire Support, and 2.6mm Steel Wire Strength Member
Specifications
Brand Name :
Dawnergy
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Carton
Fiber Type :
ITU-T G.657A1
Supporting wire :
0.4mmSteel wire
Strength member :
2.6mmSteel wire
Description

CABLE SPECIFICATION

Spider Web Fiber Optic Cable with ITU-T G.657A1 Fiber, 0.4mm Steel Wire Support, and 2.6mm Steel Wire Strength Member

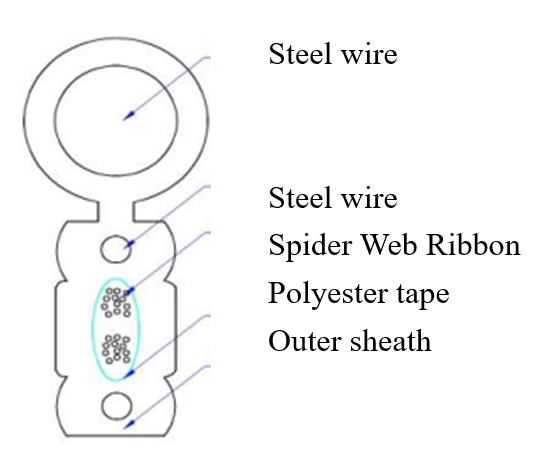

- Not to scale -

STRUCTURE

ITEM

PERFORMANCE

Fiber

Type

ITU-T G.657A1

Cores

Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua, Blue*, Orange*, Green*, Brown*, Gray*, White* Red*, Black*, Yellow*, Violet*, Pink*, Aqua*,

*Black ring marking

Materials

Supporting wire

0.4mmSteel wire

Strength member

2.6mmSteel wire

Outer sheath

LSZH (Black)

H1 - H2 × W

12:10.0 ± 0.5 mm - 5.0 ± 0.3 mm × 3.5 ± 0.2 mm

24:10.5 ± 0.5 mm - 5.5 ± 0.3 mm × 3.5 ± 0.2 mm

Cable weight

12:Approx. 81 kg/km；24:Approx. 83 kg/km；


TECHNICAL SPECIFICATIONS

ITEM

PERFORMANCE

Attenuation

≤0.40 dB/km@1310 nm ≤0.30 dB/km@1550 nm

Tensile strength

(IEC 60794-1-21 E1)

Short-term: 3000 N. Additional attenuation after test ≤ 0.10 dB

Crush resistance

(IEC 60794-1-21 E3)

Short-term: 1500 N/100mm. No fiber break, no sheath damage.

Additional attenuation ≤ 0.10 dB.

Minimum

bending radius

Bend radius with supporting wire 260mm Bend Radius without supporting wire 100mm

Environmental performance

RoHS


TEMPERATURE RANGE

Operating

Transportation & Storage

Installation

-40~+70℃

-40~+70℃

-10~+50℃
