1.2x1.6mm Indoor Invisible Cable with Bending Insensitive Fiber and Flame-retardant TPU Sheath for FTTH Applications
1.2x1.6mm Indoor Invisible Cable with Bending Insensitive Fiber and Flame-retardant TPU Sheath for FTTH Applications
Specifications
Brand Name :
Dawnergy
Model Number :
Da-IIC-1.2x1.6mm
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Carton
Optical Fiber Type :
SM, G657B3
Outer Diameter :
1.2*1.6
Working Humidity :
5%RH to 93%RH
Description

Da-IIC-1.2x1.6mm Indoor Invisible Cable

DA-Indoor invisible cable uses bending insensitive fiber as optical communication medium, the cable is completed with a layer of hot melt adhesive coat.

Cable Construction

1.2x1.6mm Indoor Invisible Cable with Bending Insensitive Fiber and Flame-retardant TPU Sheath for FTTH Applications

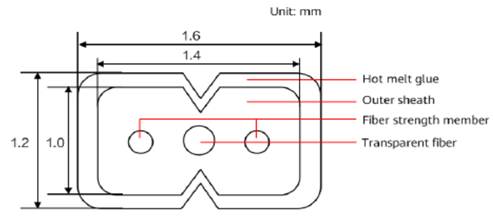

Cross Section

1.2x1.6mm Indoor Invisible Cable with Bending Insensitive Fiber and Flame-retardant TPU Sheath for FTTH Applications









Features

l Small outer diameter, light weight, transparent

l Great bending performance

l Easy and efficient installation

l Suitable for most surface Installation

Application

l FTTH

l Indoor Cabling

Cable Specifications

Parameters

Specifications

Optical Fiber

Type

SM, G657B3

Fiber no.

1

Outer Diameter (mm)

1.2*1.6

Strength Member Material

Bare Fiber

Outer Sheath Material

Flame-retardant TPU

Cable Length (m)

10, 15, 20, 25, 30, 40, 50

Cable Weight (kg/km)

Approximately 6

Color

Transparent

Flamability

Meets the vertical flame-retardant requirements of a single cable.Complies with the CPR Eca standard

Torsion ( N )

10

Max. Tensile Strength (N)

Short Term

50

Long Term

20

Max. Crush Resistance (N/100mm)

Short Term

500

Min. Bending Radius (mm)

Dynamic

20

Static

10

Cable Attenuation (dB/km)

At 1310nm

≤0.37

At 1550nm

≤0.24

Temperature Range(°C)

-10 ~ +60

Min. Installation temperature

-10°C

Transport Temperature Range

-10°C to +70°C

Termination

Dual-Ended SC/APC

Working Humidity

5%RH to 93%RH

UV aging test

ISO 4892-2 Requirement

After 96H, the color matching between pristine and aging samples should be less than 12 (ΔE < 12)

After 500H, the invisible cables on wooden boards, wallpapers, and latex paints should not fall off

Damp and head aging test

65°C, 95%RH, 500 hours

After 96H, the color matching between pristine and aging samples should be less than 12 (ΔE < 12)

After 500H, the invisible cables on wooden boards, wallpapers, and latex paints should not fall off

CONNECTOR SPECIFICATIONS

Parameters

Specification

Item

Connector 1 and connector 2

Type

SC/APC

Insertion loss

≤0.3dB

Average value of interchangeability (used for link budget)

≤0.25dB

Return Loss

≥60dB

Pull

Load: 20N, 5N/s

Duration: 60s

Impact

Drop height: 1.5m

Number of Drops: 5 for each connector

Static Side Load

Load: 1N

Duration: 1h
