Outdoor Remote Cable Patch Cord with ODVA MPO Connector and Armored Outdoor Cable for Low Insertion Loss
Outdoor Remote Cable Patch Cord with ODVA MPO Connector and Armored Outdoor Cable for Low Insertion Loss
Specifications
Brand Name :
Dawnergy
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Carton
Connector Type :
ODVA (MPO) Female
Main Cable Type :
Armored outdoor remote cable
Total Length (m) :
as customer request
Description

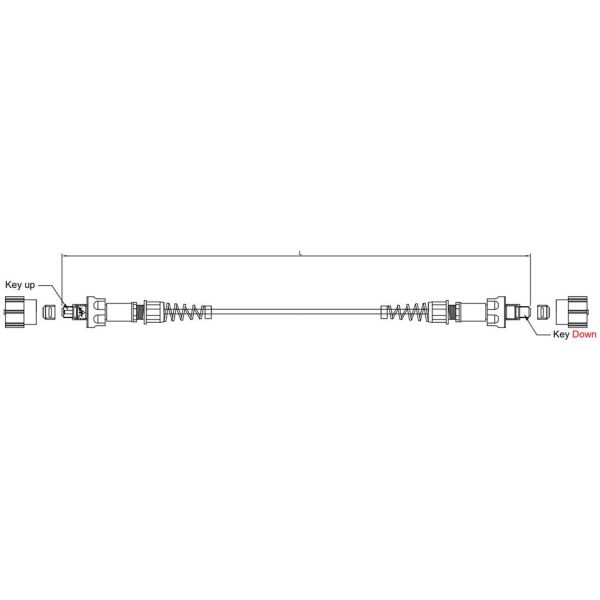

Outdoor Remote Cable Patch Cord (ODVA MPO Connector)

Outdoor Remote Cable Patch Cord with ODVA MPO Connector and Armored Outdoor Cable for Low Insertion Loss

MPO Polarity A

Applications

l Telecommunication networks

l FTTA


Features

l Low insertion loss and high return loss

l Good durability

Patchcord Specifications

Parameters

Specification

Connector

Type

ODVA (MPO) Female

Insertion Loss (dB)

≤0.7

Return Loss (dB)

≥55 (APC)

Main Cable

Type

Armored outdoor remote cable

Fiber Core

12 or 24

Jacket Material

LSZH

Jacket Color

Black

Diameter (mm)

7.0±0.2

Total Length (m)

as customer request

Tolerance (m)

0~+0.1, If L ≤10,

0~+0.2, If 10< L≤20,

0~+1%×L, if L>20, L= patchcord length

Temperature (°C)

Operating/Storage

-20~+60

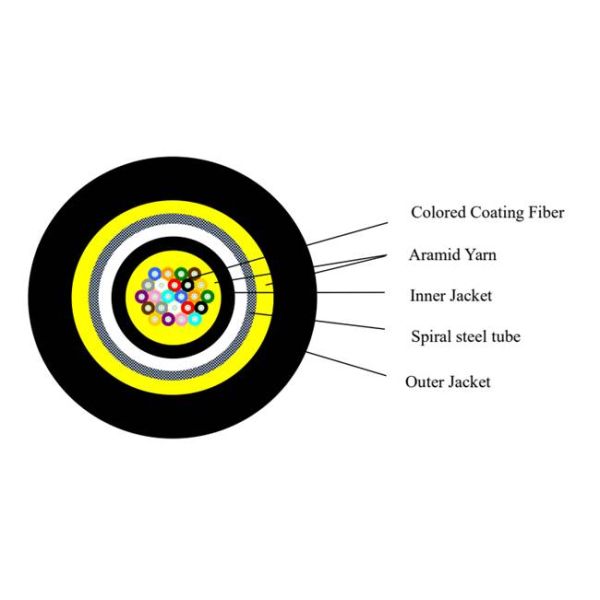

7.0mm Armored Outdoor Remote Cable

Outdoor Remote Cable Patch Cord with ODVA MPO Connector and Armored Outdoor Cable for Low Insertion Loss


Fiber Parameters

No.

Items

Unit

Specification

G.657A1

1

Mode Field Diameter

1310nm

μm

8.8±0.4

1550nm

μm

9.8±0.5

2

Cladding Diameter

μm

125±0.7

3

Cladding Non-Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding-Coating Concentricity Error

μm

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260

9

Attenuation(max.)

1310nm

dB/km

≤0.35

1550nm

dB/km

≤0.21

10

Macro-Bending Loss

1turn×10mm radius @1550nm

dB

≤0.75

1turn×10mm radius @1625nm

dB

≤1.5






Cable Parameters

Items

Specifications

Fiber Count

12 or 24

Colored Coating Fiber

Dimension

250±15μm

Color

Blue,Orange,Green,Brown, Gray, White,Red,Black,Yellow,Purple, Pink,Aqua

Cable subunit

Diameter

2.9±0.1mm

Material

LSZH

Color

Black

Strength member

Aramid Yarn

Spiral steel tube

Dimension

4.6±0.2mm

Material

stainless steel Tube

Jacket

Dimension

7.0±0.2mm

Material

LSZH

Color

Black

Strength member

Aramid Yarn

Mechanical and Environmental Characteristics

Items

Unite

Specifications

Tension (Short Term)

N

400

Crush(Short Term)

N/10cm

3000

Min. Bend Radius(Dynamic)

mm

20D

Min. Bend Radius(Static)

mm

10D

Operating Temperature

℃

-20～+60

Storage Temperature

℃

-20～+60
