2.0mm Fiber Optic Patch Cord
2.0mm Fiber Optic Patch Cord
Specifications
Brand Name :
Dawnergy
Place of Origin :
China
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Packaging Details :
Carton
Fiber Type :
SM (G652D)
Fiber Cores :
Simplex or Duplex
Strengthen Member :
Kevlar
Description

2.0mm Fiber Optic Patch Cord

Dawnergy’s fiber optic patchcords are used for connecting the device through different connectors.

Features

l Low insertion loss

l High return loss

l Good repeatability

Applications

l Telecommunication networks

l CATV networks

l FTTx project

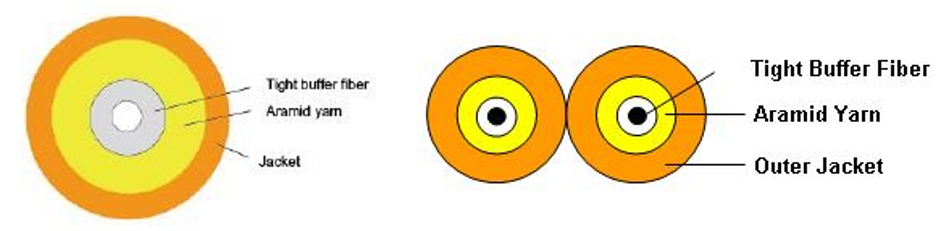

Optical Cable Drawing

2.0mm Fiber Optic Patch Cord

Patchcord Specifications

Parameters

Specifications

Fiber Type

SM (G652D)

Fiber Spec

Mode field diameter (MFD):

At 1310 nm: 9.2 μm ± 0.4 μm

At 1550 nm: 10.4 μm ± 0.8 μm

Cladding diameter: 125 μm ± 0.7 μm

Core concentricity error: ≤ 0,6 μm

Insertion Loss (dB)

≤ 0.3 (max)

Return Loss (dB)

≥ 50 (UPC)

Operating Wavelength Range

Single-mode: 1310 nm to 1550 nm

Connector Type (with dust cap)

FC/UPC-FC/UPC

FC/UPC-SC/UPC

SC/UPC-SC/UPC

SC/UPC-LC/UPC

FC/UPC-LC/UPC

Connector Color

TIA-568-C.3 standard

Fiber Cores

Simplex or Duplex

Outer Dimension

2mm ± 2%

Strengthen Member

Kevlar

Material of Outer Jacket

Yellow LSZH

Bending radius

≥ 3 cm

Cable Length

3, 5,10,15,20m ± 2%

Durability (dB)

△IL≤ 0.1, 200 times plugging

Tension

≥ 90 N

Crush resistance

≥ 500 N

Operating Temperature Range (℃)

-10 ~ +60

Guaranteed

≥ 15 years

The patch cord shall be clearly and fully marked with the following information: cable type, cable length (or meter marking of the cable reel), and manufacturer’s name.
