Description

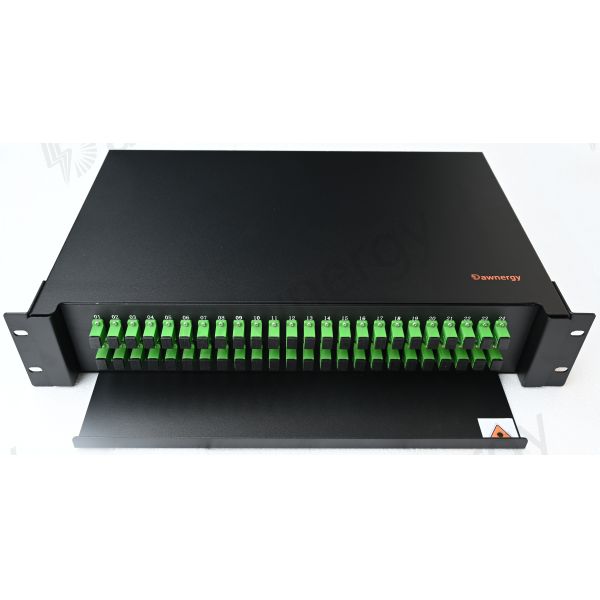

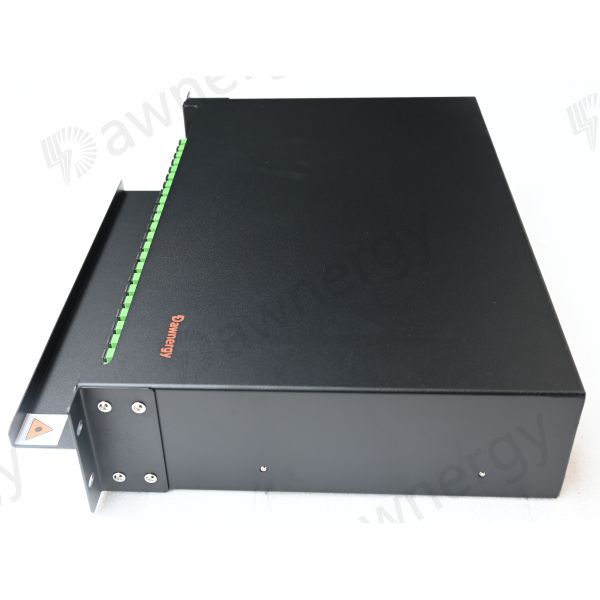

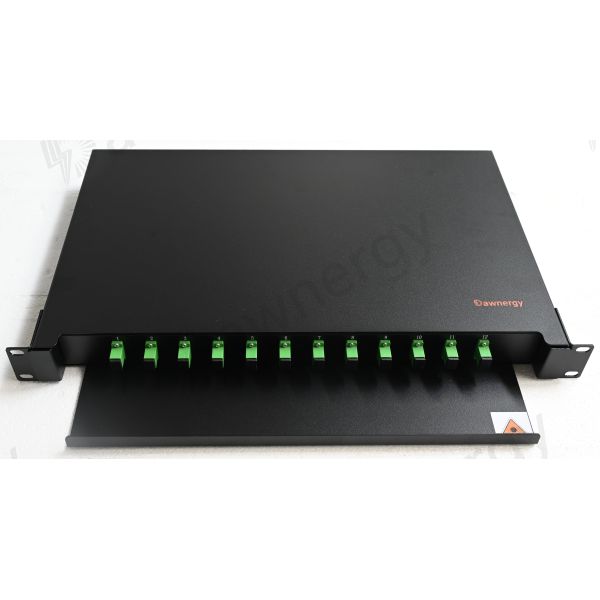

DA-PP Fiber Optic Distribution Frame

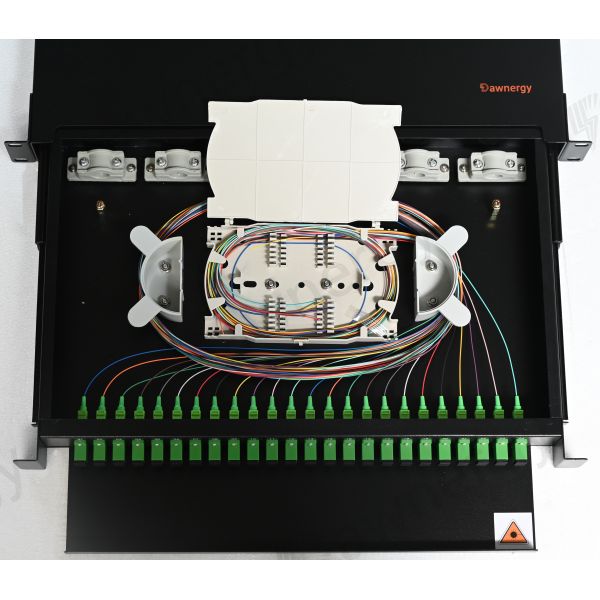

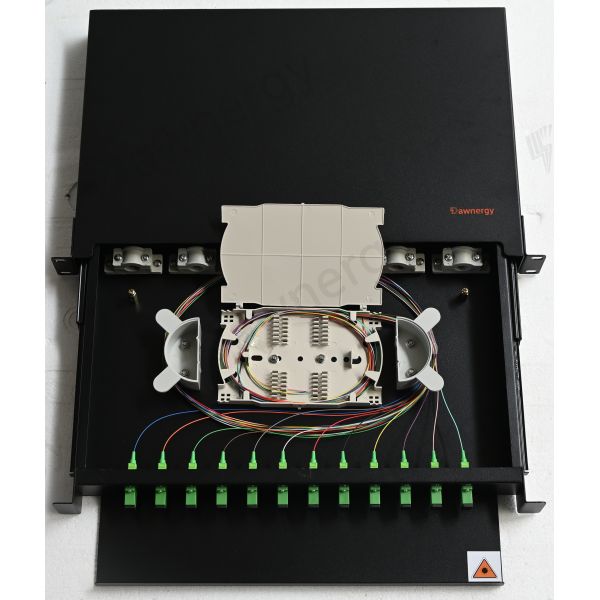

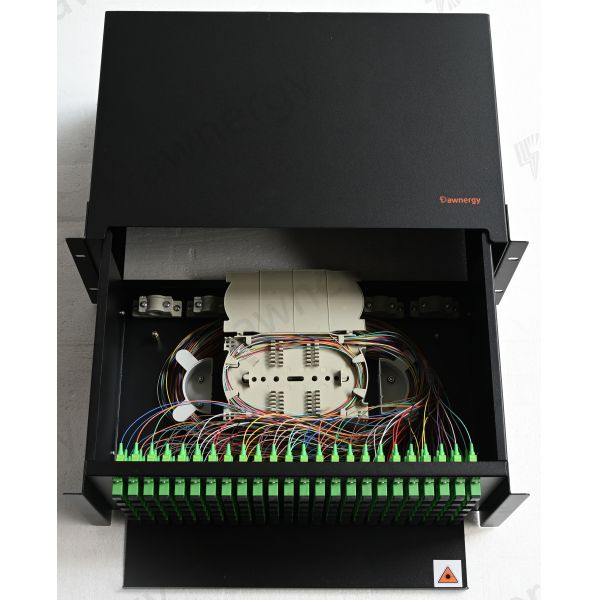

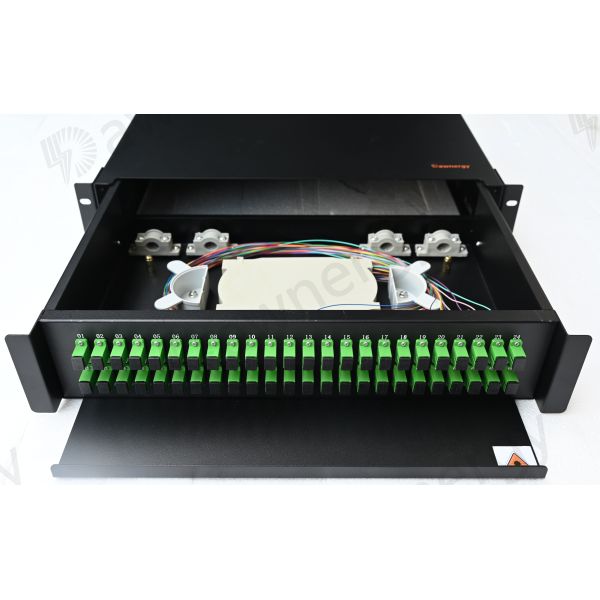

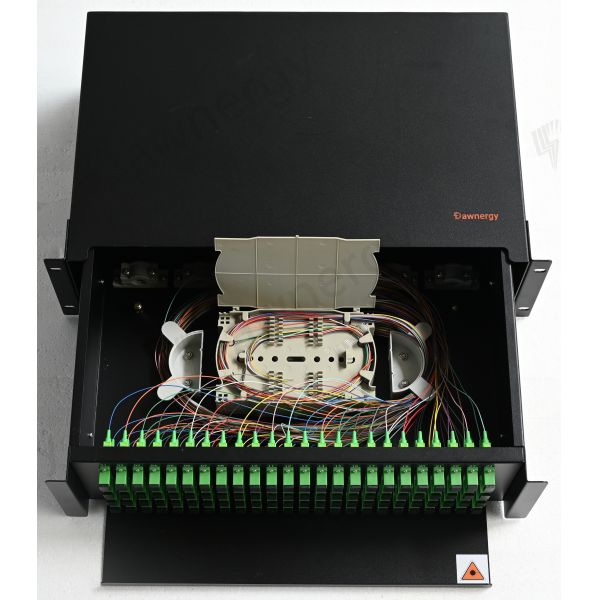

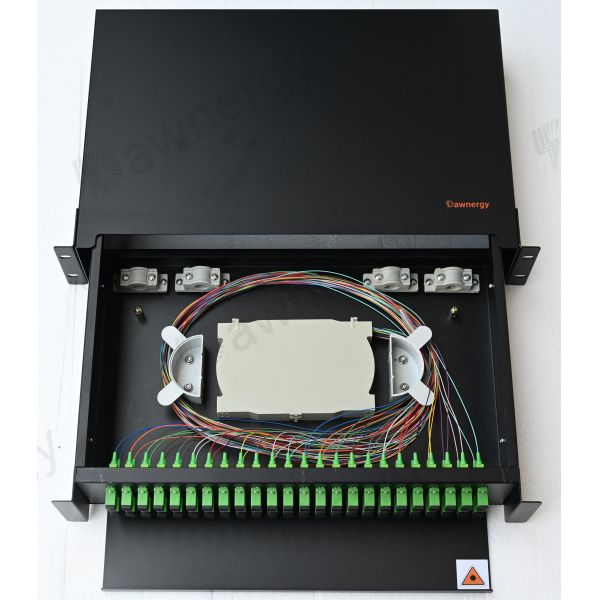

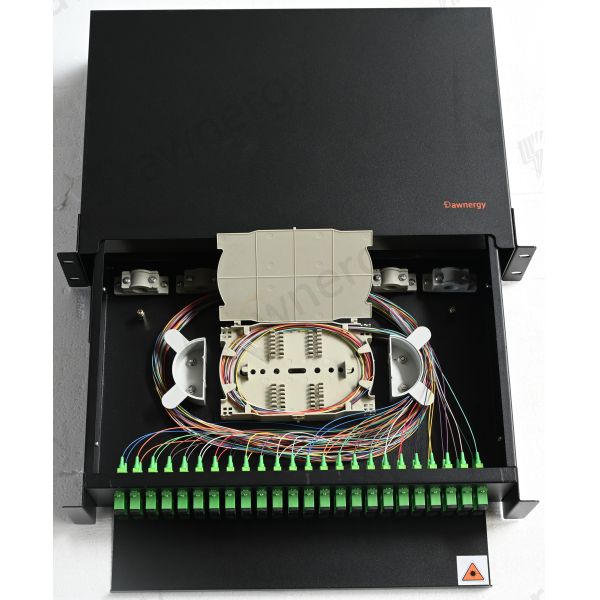

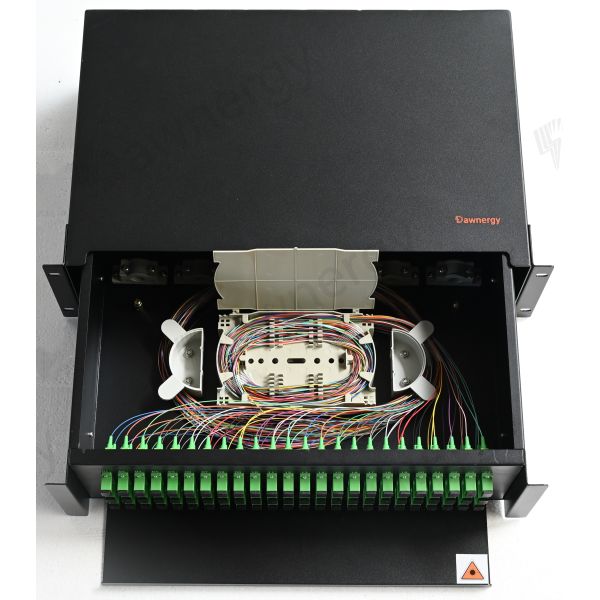

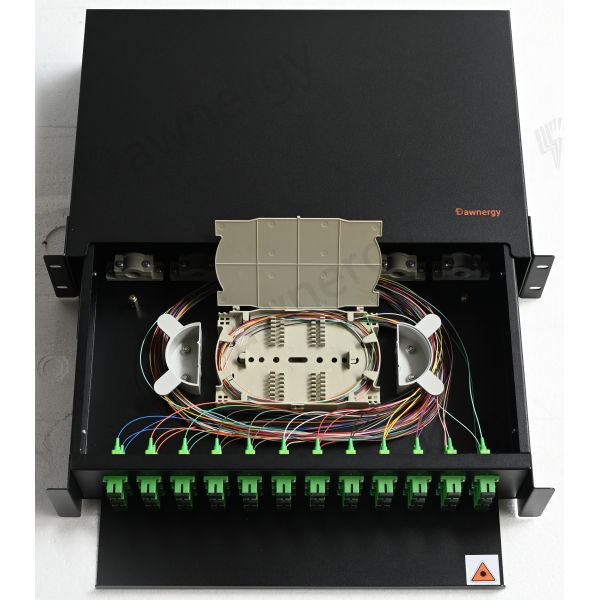

Dawnergy’s Rack-mount Fiber Optic Distribution Frame has cold steel sliding fittings with self-locking functions, preventing the drawer from falling when moved; 19-inch rack mount for SC or LC adapters. Max up to 144cores. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

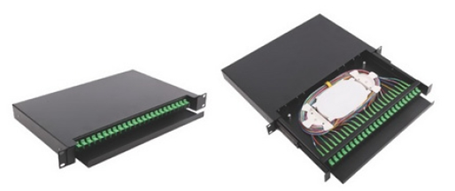

DA-PP Fiber Optic Distribution Frame

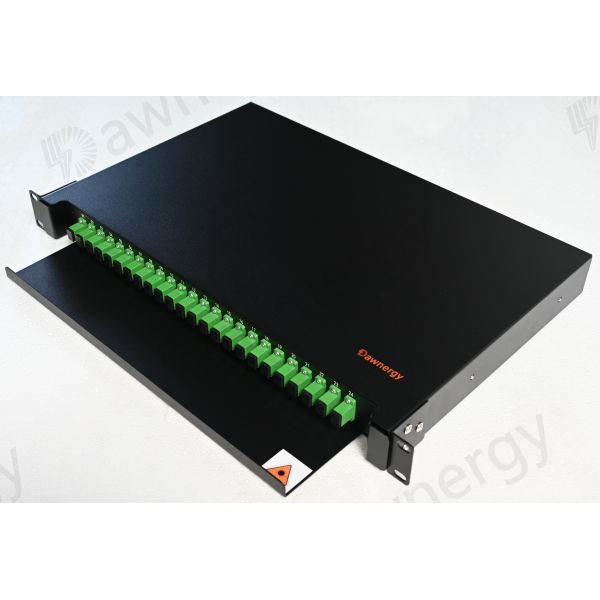

24F Sliding Type

Name: DAPP Fiber Optic Distribution Frame
Brand: Dawnergy
Price: 1 USD

Picture just for reference

Features

v Standard size, light weight and reasonable structure

v Slide out drawer for easy cable management

v Compact design for space saving

v Various panel plate to fit different adapter interface

v Easy for management and operation

Applications

v Telecommunications subscriber loop

v Fiber to the home (FTTH)

v LAN/WAN

v CATV

Specifications

Parameters	Specification
Max. No. of Cores	12/24	36	48	72	96	144
Adapter Type	SC/APC or SC/UPC LC/APC or LC/UPC
Box Material	1.2mm Cold-rolled steel
Splicing Tray	24cores tray
Open Type	Sliding type
Dimensions (mm)	48536044	48536066	48536088	485360132	485360176	485360264

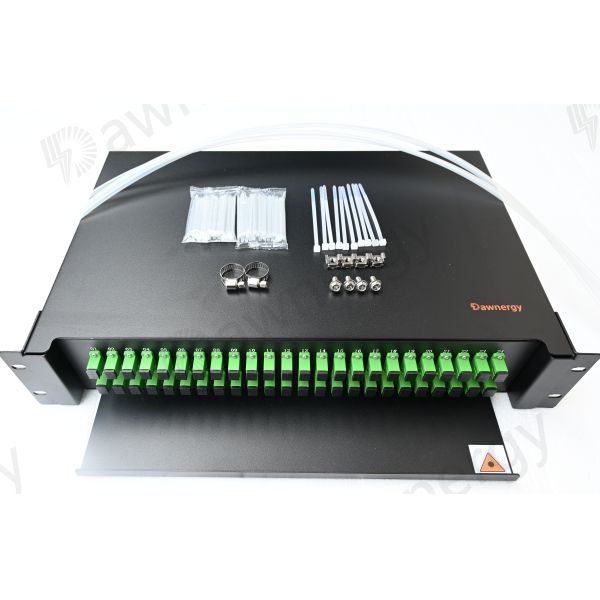

Standard Package

No.	Name	Unit	Quantity
1	Fiber Optic Distribution Frame	set	1
2	Cable Ties	pieces	According to fiber cores
3	Protective Sleeves	pieces	12, 24, 36, 48, 72, 96 or 144

Ordering Information

PN	Name	Description
DA-PP-S-12B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 1U, sliding type; Max. 12 cores, SC adapter panel;
DA-PP-S-24B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 1U, sliding type; Max. 24 cores, SC adapter panel;
DA-PP-S-36B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 1.5U, sliding type; Max. 36 cores, SC adapter panel;
DA-PP-S-48B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 2U, sliding type; Max. 48 cores, SC adapter panel;
DA-PP-S-72B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 3U, sliding type; Max. 72 cores, SC adapter panel;
DA-PP-S-96B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 4U, sliding type; Max. 96 cores, SC adapter panel;
DA-PP-S-144B-SC-1	Fiber Optic Distribution Frame	19-inch rack, 6U, sliding type; Max. 144 cores, SC adapter panel;

Note: FC TYPE Adapters and pigtails are optional
