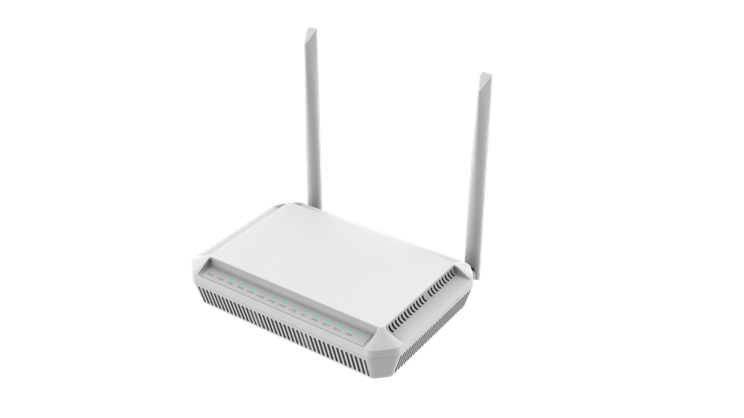

GPON ONT with Dual-Band Wi-Fi 5 AC1200 and 2 Gigabit Ports
GPON ONT with Dual-Band Wi-Fi 5 AC1200 and 2 Gigabit Ports
Specifications
Brand Name :
Dawnergy
Model Number :
DA-ONT-2G-AC1200-6
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
carton
GPON Standards :
ITU.T G.984, G.988
Optical Module :
Class B+, BOB
Distance :
20KM Max
Description
DA-ONT-2G-AC1200-6 GPON ONT with Dual-Band Wi-Fi 5 AC1200
GPON ONT with Dual-Band Wi-Fi 5 AC1200 and 2 Gigabit Ports
Product Overview

The DA-ONT-2G-AC1200-6 is an intelligent routing passive optical network terminal designed for FTTH solutions. This device features 2 gigabit ports to support high-speed internet and HD IPTV applications.

Compliant with 802.11ac standard, it delivers Wi-Fi speeds up to 1200Mbps. Equipped with dual-band 5dBi high-power antennas (2.4GHz & 5GHz), it ensures superior video streaming and extensive Wi-Fi coverage. The device offers broad compatibility with global OLT brands and supports plug-and-play functionality with OMCI and TR069 remote maintenance.

Key Features
  • Ideal for home broadband, e-government, and enterprise applications with integrated broadband/data/video access
  • Comprehensive FTTH solutions for pure data, double play, and triple play services
  • Smart connectivity through multiple UNIs: GE and Wi-Fi
  • User-friendly GUI with plug-and-play capability
  • Efficient management with port-based configuration and status monitoring
  • Carrier-grade hardware/software reliability for continuous operation
Technical Specifications
General
GPON Standards ITU.T G.984, G.988
Optical Module Class B+, BOB
Maximum Distance 20KM
Data Rates Upstream: 1.25Gbps, Downstream: 2.5Gbps
Wavelength 1310nm (Transmit), 1490nm (Receive)
Tx Output 0.5～5dBm
Rx Input -8 to -30dBm
Hardware
SoC Chipset EN7528HU
RAM 256MB
Flash Memory 128MB
Wi-Fi Chipset 2GHz: MT7592N, 5GHz: MT7613B
Interfaces 1 x SC/APC GPON Port, 2 x 10/100/1000Mbps LAN
Buttons Power ON/OFF, WPS, Reset
LED Indicators Power, PON, LOS, Internet, LAN1~2, 2.4G, 5G, WPS
Power Supply DC 12V 1A
Antenna 2 x 2.4GHz & 5GHz external antennas (2*5dBi)
Dimensions 195 * 134 * 45mm (W * D * H)
Weight 320g (device only)
Color White
Software Features
Basic PPPoE, DHCP, DNS relay, NAT/NAPT, NTP, IPv4/IPv6 Dual Stack, DS-lite
Advanced Port Forwarding, ALG, UPnP, DMZ, VPN Passthrough, DDNS, Multi-WAN, VLAN, QoS
Security SPI Firewall, MAC/IP/URL Filtering, DoS Attack Protection, ACL
Multicast IGMP v1/v2/v3 Snooping/Proxy, MLD v1/v2, Multicast over Wi-Fi
Management System Log, Diagnosis, Http/Https, Telnet/SSH/TR069/TR098/TR181
Wireless
Standards IEEE 802.11 a/b/g/n/ac, WMM, WPS, EasyMesh
Frequency 2.4GHz & 5GHz
Data Rate 2.4GHz: 300Mbps (40MHz), 5GHz: 867Mbps (80MHz)
Security WEP, WPA/WPA2-PSK
Environmental Conditions
Operating Temperature 0°C to 45°C
Storage Temperature -10°C to 60°C
Operating Humidity 5% to 90% (non-condensing)
Storage Humidity 5% to 90% (non-condensing)
Certifications

Compliant with CE and WiFi Alliance standards.

Package Contents
  • 1 * GPON ONT
  • 1 * Power Adapter (12VDC Plug)
  • 1 * Quick Installation Guide
