Single Mode Bare Fiber Ribbon - 12 fibers
Single Mode Bare Fiber Ribbon - 12 fibers
Specifications
Certification :
CE ROHS
fiber count :
12 fibers
width :
3050±50 μm
1550nm attenuation :
≤0.22 dB
Brand Name :
DAWNERGY
fiber type :
Single Mode Bare Fiber Ribbon
core advantage :
supports mass splicing（12‑fibers simultaneous splice）
flatness :
≤50 μm
thickness :
350±50 μm
1310nm attenuation :
≤0.36 dB
Place of Origin :
CHINA
fiber material :
Corning G657A2 + coating resin
Payment Terms :
L/C,D/A,D/P,T/T
structure :
flat‑row ribbon bonded by matrix tape
Description

Single Mode Bare Fiber Ribbon - 12 fibers


Single Mode Bare Fiber Ribbon - 12 fibers

Description

Fiber optic ribbon is a flat, parallel strip made of multiple optical fibers bonded together side-by-side.

Features

l Structure: Contains 12 individual glass fibers laid in a flat row and held by a matrix or tape.

l Mass Splicing: Allows workers to splice an entire group of fibers (like all 12 at once) in a single machine cycle instead of splicing them one by one

Specifications

Parameters

2x16

Material

Corning G657A2 fiber, coating resin

Number of fibers in the bundle

12

Width w (μm)

3050±50

Thickness t (μm)

350±50

Horizontal spacing between adjacent fibers d (μm)

≤300

Horizontal spacing between fibers on both sides b (μm)

2750±50

Flatness p (μm)

≤50

1310nm attenuation (dB)

≤0.36

1550nm attenuation (dB)

≤0.22

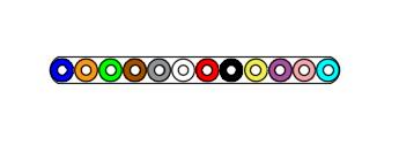

Fiber Colors

NO.

1

2

3

4

5

6

7

8

9

10

11

12

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Violet

Pink

Aqua

Color
