480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
480 Core Dome Type Fiber Optic Splice Closure
Specifications
Brand Name :
Dawnergy
Model Number :
DA-FOSC-DM480-WPA-J0922-3-x
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
130 USD
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
100 per day
Max. Capacity of Fibers :
480
Material :
PP+GF
Protection Lever :
IP68
Dimensions :
300 (D) × 510 (H)mm
Installation Method :
Directly buried, Aerial, Pipeline, Pole, Manhole, etc
Max. No. Trays :
40
Weight :
4~5.5kg
Description

DA-FOSC-DM480-WPA-J0922-3-x

Dome Type Fiber Optic Splice Closure

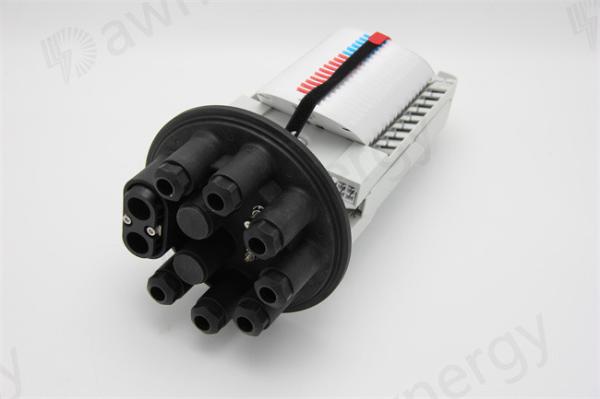

Dawnergy's FOSC is designed for connection and protection of fiber cables. This model has one uncut port, seven branch ports, two drop cable ports. It can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables (micro duct, air blowing, loose tube, skeleton, ribbon etc.)

Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with PP + Glass fiber plastic material
  • Portable, impact resistant, corrosion resistant and lightning resistant
  • Cable diameter: 1 Uncut port support φ8～25mm cable; 7 branch ports support φ8～18mm cable; 2 drop ports support φ2*3mm soft cable
  • Capacity: It can install 40 pieces of 12-core fiber trays, with the maximum capacity of 480 cores
  • Installation method: Suitable for direct buried, aerial, pole, pipeline, manhole, etc
  • Sealing: Mechanical seal is adopted for box body and cable mouth, with protection grade of IP68
  • Provide logo customization service.

Applications

  • FTTH access networks
  • Telecommunication network

Specifications

Parameters Specification
Max. Capacity of Fibers 480f
No. of Fibers/Tray 12f
Max. No. Trays 40

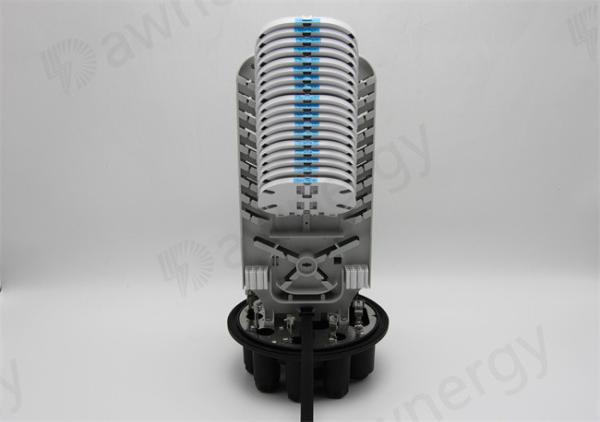

Tray Type Splice and splitter 2in1. Each tray has 12 slots for protection sleeve install and have one PLC splitter slot (Max support 1x32 250um bare fiber PLC splitter). Use different labels to differentiate function.
Number of In-out Ports

8 (1 oval cable port and 7 round cable ports) - Mechanical

2 round ports - Heat shrink
Sealing Method Mechanical, different cable sealing plugs for different OD cables
Installation Method Directly buried, Aerial, Pipeline, Pole, Manhole, etc
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
Protection Lever IP68
Material PP+GF
Dimensions (mm) 300 (D) × 510 (H)
Weight (kg) 4~5.5

Structure Drawing

480 Core Dome Type Fiber Optic Splice Closure
Optional accessory

Item Description Qty
1 Air Valve 1set
2 Ground lead 1 set
3 Sealing kits As require
4 Aerial mounting fittings 1 set
5 Pole mounting fittings 1 set
6 Wall mounting fittings 1set

Ordering Information

DA-FOSC-DM480-WPA-J0922-288C-3-x

Dome type, Mechanical sealing; 288fibers, 24 trays of 12fibers/tray and more than 10pcs PLC trays included; One uncut port, seven branch ports, two drop cable ports; Max capacity: 480fibers; material: PP+GF, dimensions (mm): 300 (D) × 510 (H).

Option accessories for pole, wall, aerial mounting, air valve and different cable sealing plugs
