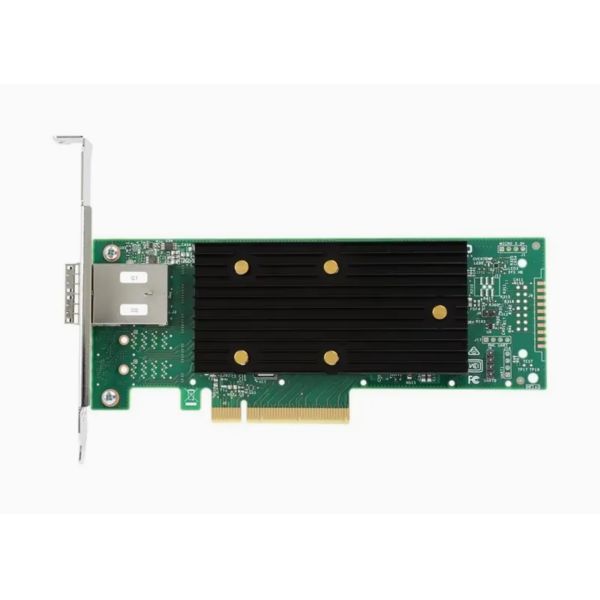

Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Broadcom 9400-8E HBA Host Bus Adapter 12Gb/S SAS Hard Disk Array Card 8 Port
Specifications
Brand Name :
Broadcom
Model Number :
9400-8E
Place of Origin :
Beijing, China
MOQ :
1pieces
Price :
$300 -600/ piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
box
Transmission Rate :
12 GB/S
interface type :
PCI
Host Bus Type :
PCIe 3.1 x8
I/O Processor/SAS Controller: :
Adopt SAS3408 chipset
Key RAID Data Protection Features: :
Support RAID 0/1/5/6/10/50/60 level
Data Transfer Rates: :
12Gb/s SAS-3 standard per port
Physical Dimensions :
167.65mm * 68.90mm
Warranty :
3 years
Description
* High-Speed Transmission: 12Gb/s SAS-3 interface + PCIe 3.1 x8 host channel, providing up to 96Gb/s aggregate bandwidth to meet large-capacity storage needs.
* Large-Scale Expansion: Supports up to 1,024 SAS/SATA devices, designed for large storage enclosures and suitable for enterprise-level storage deployments.
* Hardware-Level RAID: Built-in SAS3408 controller supporting RAID 0/1/5/6/10/50/60 multi-level arrays, with hot spare drives and online capacity expansion capabilities.
* Wide Compatibility: Certified for Windows/Linux/VMware systems, compatible with mainstream server environments. * Energy-Efficient Design: Only 6.12W typical power consumption, low-profile form factor (167.65×68.90mm) compatible with various server spaces.
Parameter
Description
Product Model
9400-8e
‌Physical Dimensions‌
Low-profile design: 167.65mm × 68.90mm (including bracket)6
‌Host Bus Type‌
PCIe 3.1 x8 (backward compatible with PCIe 2.0/1.0)67
‌I/O Processor‌
Broadcom SAS3408 controller26
‌RAID Features‌
Hardware RAID 0/1/5/6/10/50/60, supports hot spares and online expansion36
‌Device Support‌
SAS/SATA devices: 1024; NVMe devices require direct PCIe connection16
‌Data Transfer Rate‌
12Gb/s SAS-3 per port, aggregate bandwidth 96Gb/s26
‌Cache Options‌
No onboard cache, relies on host memory6
‌External Interfaces‌
Standard 2× SFF-8644 external ports (compatible with SFF-8643 cables)26
‌Management Software‌
Supports LSI Storage Authority, StorCLI, and UEFI HII configuration tools6
‌Certifications‌
CE/FCC/ROHS/WEEE; certified for VMware ESXi, Linux, and Windows68
‌Operating Environment‌
Temperature: 0-55°C; Humidity: 20%-80% non-condensing; MTBF 5M hours @40°C67
‌Typical Power Consumption‌
6.12W (full load)6
‌Firmware Features‌
Supports Online Firmware Upgrade (OFU) and multi-path I/O optimization69
‌Compatibility‌
Supports UEFI 2.7 and Legacy BIOS boot modes6
Product Description


Packing & Delivery
FAQ
Q:Are you trading company or manufacturer?
A:We are manufacturer.

Q:How long is your delivery time?
A:Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.

Q:Can you offer a better price?Any discount?
A:Yes we can give you discount.But it is based on quantity.More quantity more attactive price.

Q:What is your warranty period?
A:1.Different products have different warranties.
2.comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every
detail.Please contact us if you need our detail warranty term.

Q:What's the package?
A:Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure youwill receive the goods in good condition.
