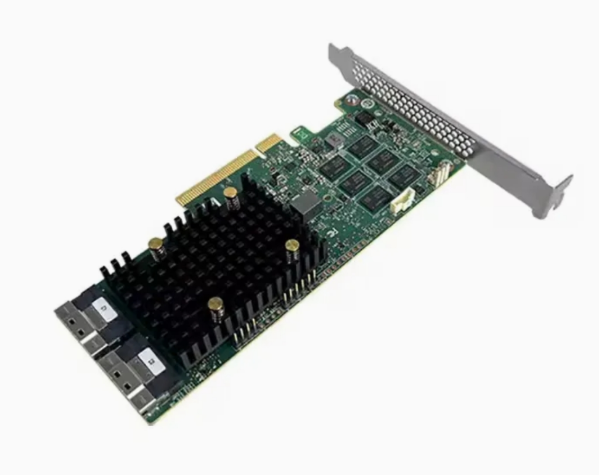

Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Broadcom 16 Port RAID Controller Cards SAS 12Gb/S 9560-16I SATA PCIe 4.0 For Enterprise Server
Specifications
Brand Name :
EMULEX
Place of Origin :
Beijing, China
MOQ :
1 pieces
Price :
$400-600 / piece
Model Number :
9560-16I
Packaging Details :
box
Product name :
9560-16i
application :
Server
transmission rate :
10/100Mbps
interface type :
PCI
Host Bus Type :
PCIe 4.0 x8 lanes (compatible with PCIe 3.0/2.0)
Warranty :
3 years
Description

The core advantages of LSI MegaRAID 9560-16i lie in its tri-mode full protocol support and high-performance hardware design:

* Enables 12Gb/s SAS and 16GT/s NVMe high-speed transmission via PCIe 4.0 x8 lanes and SAS3916 ROC controller.
* Ensures data security with 4GB DDR4 cache and CacheVault technology.
* Offers flexible expansion capabilities: * Supports multi-level RAID arrays (0/1/5/6/10/50/60).
* Accommodates over 240 devices with U.3 compatibility.
* Features tri-mode deployment flexibility to meet rigorous enterprise storage requirements for speed, reliability, and
compatibility.
Parameter
Description
Product Model
9500-16I
Physical Dimensions
Thin specification: 6.127 inches × 2.712 inches (approximately 155.6mm × 68.9mm)
Host Bus Type
PCIe 4.0 x8 lanes (compatible with PCIe 3.0/2.0)
I/O Processor
SAS3916 12Gb/s Tri-Mode RAID-on-Chip (ROC) controller
RAID Level Support
RAID 0/1/5/6/10/50/60 and JBOD mode
Device Support Capacity
- SAS/SATA devices: 240
- NVMe devices: 32
Data Transfer Rate
- SAS interface: 12Gb/s
- PCIe interface: 16GT/s (Gen4 standard)
Cache Configuration
8GB DDR4 cache (with CacheVault CVPM05 protection module)
Internal Interfaces
2 x8 SFF-8654 SlimSAS connectors
Management Software
LSA management suite/StorCLI command-line tool/UEFI HII interface
Certification & Compatibility
Supports mainstream systems such as Windows/VMware/Linux/Citrix XenServer/FreeBSD, certified by RoHS/FCC/CE, etc.
Tri-Mode Technology Support
Simultaneously runs NVMe/SAS/SATA protocols, compliant with SFF-TA-10001(U.3) and UBM specifications
Environmental Specifications
- Operating temperature: 0°C to 55°C
- MTBF: >3 million hours (40°C environment)
- Operating humidity: 20%-80% non-condensing
Core Chip
SAS3916 RoC controller (Tri-Mode SerDes technology supports NVMe/SAS/SATA protocols)
Power Consumption Index
Typical operating power: 8.9W
