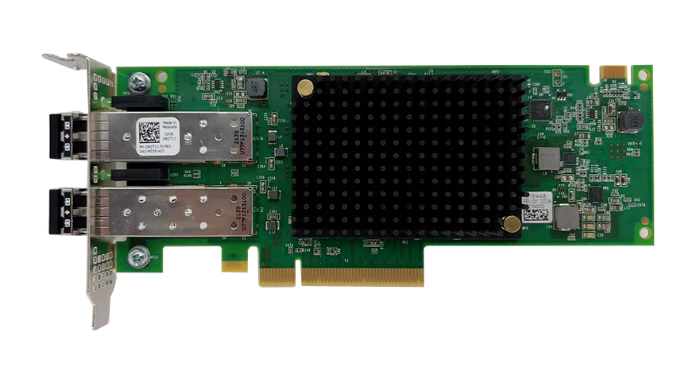

Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Gen4X8 Fibre Channel Host Bus Adapters Emulex Lpe35002-M2 32GB Dual Port Pcie
Specifications
Brand Name :
EMULEX
Model Number :
LPE35002-M2
Place of Origin :
Malaysia
MOQ :
5pieces
Price :
US $ 1300 -1700/ pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
box
Ports :
2
rate :
32GB
Host Bus Type :
PCIe Gen4 x8
I/O Controller :
XE601
Generation :
Gen 7 (64/32GFC)
Quality assurance :
3 years
Description
Specification
Value
Lifecycle
Active
Distrib. Inventory
Yes
Ordering Part #
LPe35002-M2
Ordering Optional Accessories
LP32-LW-OPT-1 32GFC Optic (longwave laser with LC connector SFP+ transceiver): 1 pack, LP32-LW-OPT-2 32GFC Optics (longwave laser with LC connector SFP+ transceiver): 2 pack
Whats in the box
Each box includes:Quantity 1, low-profile Host Bus Adapter with optic/sQuantity 1, full-height bracketQuantity 1, low-profile bracketQuantity 1, Firmware download sheet and RoHS sheet
Generation
Gen 7 (64/32GFC)
Physical Dimensions
Short, low profile PCIe card, 167.64mm x 68.91mm (6.60" x 2.71"), Standard bracket (low profile bracket ships in box)
Cable Support
0.5m to 100m at 64GFC/32GFC on 50/125 µm OM4 MMF, 0.5m to 100m at 64GFC/32GFC on 50/125 µm OM5 MMF, 0.5m to 70m at 64GFC/32GFC on 50/125 µm OM3 MMF, 10 km at 32GFC/16GFC on 9/125 µm singlemode fiber when Emulex approved longwave transceivers are used
Optical Data Rates
28.05 Gb/s (3200Mb/s), 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s) (auto-detected)
Hardware Environment
Intel x64, Intel x86, and PowerPC
Ports
2
Optics
Optics Short wave lasers with LC type connector optics
Host Bus Type
PCIe Gen4 x8
I/O Controller
XE601
Operating Humidity
5% to 95% non-condensing
Operating Temperature
0°C to 55°C
Storage Temperature
-20° to 85°C (-4° to 185°F)
OS Support
Additional support is available from OEMs and partners, Microsoft Windows, Oracle Linux, Oracle Linux with the Unbreakable Enterprise Kernel (UEK), Oracle Solaris, Red Hat Enterprise Linux, SUSE® Linux Enterprise Server, VMware vSphere
Industry Standards
Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2/3/4/5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-NVMe/AM1, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PI-7, FC-TAPE, FCP-2/3, FCP-4, Legacy ANSI/IETF standards: FC-PH, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4
