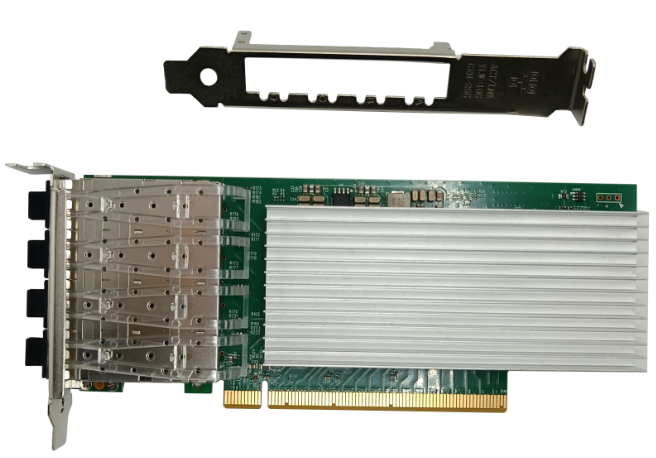

HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
HZ25E810F4 25Gbps PCIe Network Card With Intel E810-CAM2 Controller And PCIe Gen4.0X16 Interface
Specifications
Brand Name :
HengzhengTC
Model Number :
HZ25E810F4
Place of Origin :
Beijing, China
MOQ :
1 piece
Price :
$700 -1000/ piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
box
transmission rate :
25Gbps,10Gbps,1Gbps
interface type :
PCIe
Interface Type :
4* SFP28
Network port :
Four ports
Description
Product Description
product model
HZ25E810F4
Control chip
Intel E810-CAM2/ E810-CAM1 Ethernet controller
edition
PCIE add-in card
Bus type
PCIe 4.0 x16
Network cable interface type
SFP28,SFP+,SFP
Network port transmission rate
25Gbps,10Gbps,1Gbps
I/O Port
4* SFP28
Bus rate
PCIE v4.0 16 GT/sec
connector
PCIe x16 golden finger
input voltage
Voltage: 3.3V_AUX,12V,3.3V
Network standard
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
LED
Link up LED:25G: green other SPEED: amber Connectionless light goes out.
Activity LED: green (the light goes out when there is no data, and flashes when there is data)
Operating system support
Ubuntu,CentOS,Kylin,NeoKylin, Tongxin UOS, Windows, Windows Server, Linux, VMware ESX/ESXi.
Other technical parameters
Adapted cpu:intel,AMD, Kunpeng, etc.
Interface adaptation medium: optical and electrical module
10GBASE-SR/LR
10GbE DAC
25GBASE-SR/LR
25GBASE-CR
Functional characteristics
RDMA:RoCEv2,iWARP
IEEE 1588 PTP
Dynamic device configuration (DDP)
ACLs: 8K
Virtual Machine Device Queue (VMDq), Virtualization: 256VF
Intelligent unloading, tunnel unloading
Ethernet storage: iSCSI
On-chip QoS and traffic management: QoS via 802.1p PCP
Management interfaces: SMBus,MCTP over PCIe AND SMBus.
Passive cooling/active cooling can be selected.
PCIe power supply, no need for external power supply.
PCB physical data
Length and width
142*68.9mm
support
Long:119.6mm;Short:80.2mm
Working temperature
0°C to 50°C
Working humidity
0%-85%, non-condensing
storage temperature
-10°C to 60°C
Lead free process
RoHS-R6
HZ25E810F4
HengzhengTC brand HZ25E810F4 network card is an Ethernet 25G network card developed based on Intel E810 CAM1 chip. It has four 25/10/1GbE optical fiber interfaces, which can support four 25Gbps transmission bandwidths and PCI-E X16 standard slots, ensurin the efficient and stable work of the network card. The network card also supports VLAN, QOS policy, flow control and other functions.
