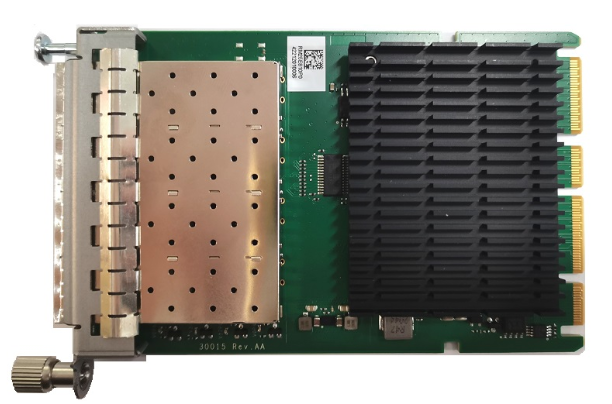

HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8
Specifications
Brand Name :
HengzhengTC
Model Number :
HZ25E810F4OCP
Place of Origin :
Beijing, China
MOQ :
1 piece
Price :
$380-500 / piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details :
box
transmission rate :
25Gbps,10Gbps,1Gbps
interface type :
OCP
private mold :
No
Interface Type :
4*SFP28
Network port :
Four ports
Warranty :
3 years
Description
Product Description
product model
HZ25E810F4OCP
Control chip
Intel E810-CAM2/E810-CAM1 Ethernet controller
edition
OCP add-in card
Bus type
OCP 4.0 x16
Network cable interface type
SFP28,SFP+,SFP
Network port transmission rate
25Gbps,10Gbps,1Gbps
I/O Port
4*SFP28
Bus rate
OCPv4.0 16 GT/sec
connector
OCP x16 golden finger
input voltage
Voltage: 3.3V_AUX,12V,3.3V
Network standard
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
LED
Link up LED:25G: green other SPEED: amber Connectionless light goes out.
Activity LED: green (the light goes out when there is no data, and flashes when there is data)
Operating system support
Ubuntu,CentOS,Kylin,NeoKylin,Tongxin UOS,Windows,Windows Server,Linux,Vmware ESX/ESXI
Other technical parameters
Adapted cpu:intel,AMD, Kunpeng, etc.
Interface adaptation medium: optical and electrical module
10GBASE-SR/LR
10GbE DAC
25GBASE-SR/LR
25GBASE-CR
Functional characteristics
RDMA:RoCEv2,iWARP
IEEE 1588 PTP
Dynamic device configuration (DDP)
ACLs: 8K
Virtual Machine Device Queue (VMDq), Virtualization: 256VF
Intelligent unloading, tunnel unloading
Ethernet storage: iSCSI
On-chip QoS and traffic management: QoS via 802.1p PCP
Management interfaces: SMBus,MCTP over PCIe AND SMBus.
Passive cooling/active cooling can be selected.
PCIe power supply, no need for external power supply.
PCB physical data
Length and width
115*76mm
support
82.5mm*15.2mm
Working temperature
0°C to 50°C
Working humidity
0%-85%, non-condensing
storage temperature
-10°C to 60°C
Lead free process
RoHS-R6
HZ25E810F4OCP
HengzhengTC brand HZ25E810F4OCP network card is a 25G four-port OCP3.0 network card based on Intel E810 master control scheme. It has four 1/10/25G adaptive SFP28 interfaces, which can support 25Gbps transmission bandwidth and OCP 3.0 system interface, ensuring the efficient and stable work of the network card. The network card also supports MSI,MSI-X, VMDq queue, QOS policy, flow control and other functions.
