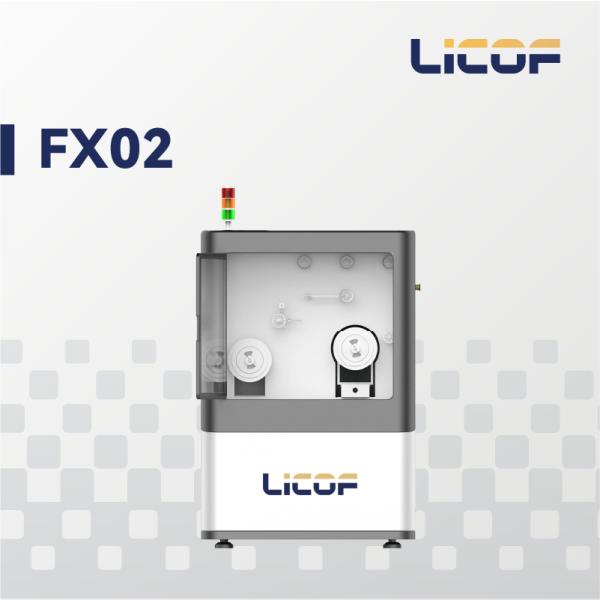

Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Standard Fiber Rewinding Machine Fiber Optical Wire Winding Machine With PLC Control
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-FX02
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-FX02
Dimensions :
100×80×160cm
Brand :
Liocrebif
Origin Place :
China
Application :
Fiber rewinding, Fiber coils, Time delay coils
Output Format :
RS422
Description
Essential details
MOQ:1
Specification Number:LKF-FX02
Product Introduction
Introduction

LKF-FX02 Fiber Rewinding Machine is specially designed for fixed-length winding and rewinding of optical fibers. By inputting the target winding length through the man-machine interface, it can complete the fixed-length winding and stop the machine automatically without manual participation, so as to realize the production automation and improve the production efficiency.

Equipment Composition

1. Fiber pay-off and take-up system

2. Clipper installation device

3. Fiber pay-off rail system

4. Touch screen

5. Fiber arrangement wheels

6. Tension control system

7. Meter counting device

FX02 Fiber Rewinding Machine

Fiber Diameter Support

φ0.05~0.26mm

Max Operating Speed

600R/min

Tension Control Range

8g-15g(speed< 200 R/Min)

Main Spindle Diameter

15mm

Max Support Spool Diameter

250mm

Length Calculating Bias

3‰

Dimension

L*W*H:1000mm×800mm×1600mm

Power

220V(±10%),50Hz,2.0KW



 Main features Standard 25km fiber spool Precision fiber arrangement Active pay-off structure Tension control accuracy ±2g PLC control   Application Areas Fiber rewinding Fiber coils Time delay coils
