Customizable FOG Optical Module Modular Integrated Sensing Component
Customizable FOG Optical Module Modular Integrated Sensing Component
Customizable FOG Optical Module Modular Integrated Sensing Component
Customizable FOG Optical Module Modular Integrated Sensing Component
Customizable FOG Optical Module Modular Integrated Sensing Component
Customizable FOG Optical Module Modular Integrated Sensing Component
Specifications
Place of Origin :
China
Brand Name :
Liocrebif
Certification :
GJB 9001C-2017
Price :
5000-25000CHY
MOQ :
1
Packaging Details :
Wooden box/Cardboard box/Container
Delivery Time :
2-4 weeks
Payment Terms :
T/T
Supply Ability :
10000
Model Number :
OM60, OM70, OM98, OM120, customized
Color&Classification :
FC60,FC70,FC98,FC120,customized
Brand :
Liocrebif
Module Type :
Gyroscope
Origin Place :
China
Application :
Fiber optic gyroscope
Output Format :
RS422
Description
Essential details
MOQ:1
Specification Number:LKF-OM60/70/98/120
Product Introduction
Introduction

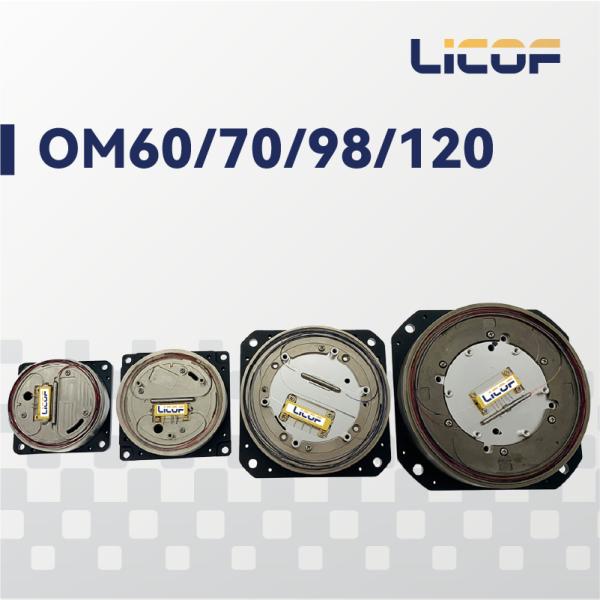

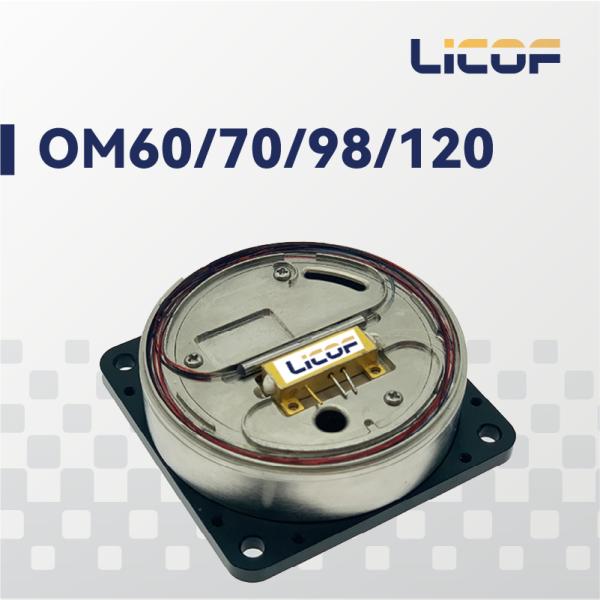

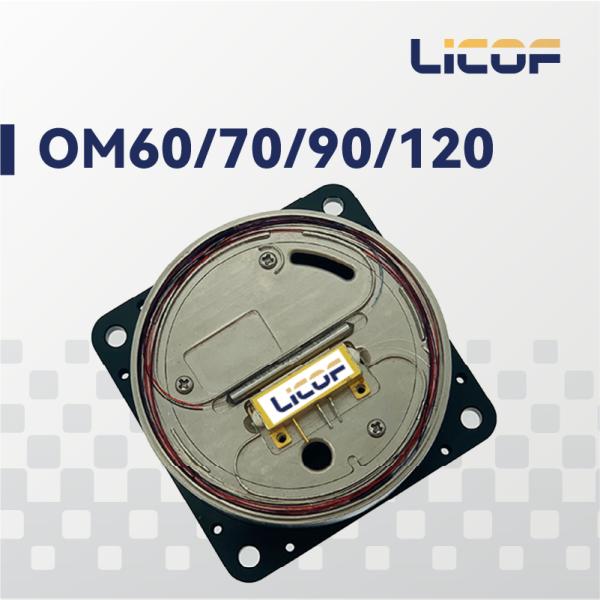

FOG optical module is a modular component of Fiber Coil + MIOC designed for fiber optic gyros. The fiber coil and MIOC are spliced together and integrated in a shell. The FOG optical module can be treated as an independent integrated sensing component, which has electrical interface and single-mode tail fiber. When using the FOG optical module, it is only need to connect electrical interface with the signal processing circuit and splice the single-mode fiber pigtail with PIN-FET through single-mode fiber fusion splicer, and the users no longer need expensive PM fiber fusion splicer to splice PM fibers of fiber coil and MIOC.

Technical Specification

FOG Optical Module

Type

OM60

OM70

OM98

OM120

Size

Φ60*19mm

Φ70*24mm

Φ98*27mm

Φ120*26mm

Working Wavelength

1310nm

1310nm

1550nm

1550nm

Fiber Coil Length

500m

550m

1460m

2220m

MIOC Half-wave Voltage

≤3.5V

≤3.5V

≤3.5V

≤3.5V

FOG Target Precision

0.1°/h

(10s avg.)

0.05°/h

(10s avg.)

0.015°/h

(10s avg.)

0.003°/h

(100s avg.)

Bias Peak-to-Peak Value

1°/h

0.8°/h

0.2°/h

0.1°/h

Magnetic Sensitivity

0.1°/h/Gs

0.02°/h/Gs

0.02°/h/Gs

0.02°/h/Gs

Working Temperature

-45 ~ +70℃

Key Features

High stability of output optical power

High stability of wavelength

Gaussian spectrum

High reliability and temperature adaptability

Application

Fiber optic gyroscope
