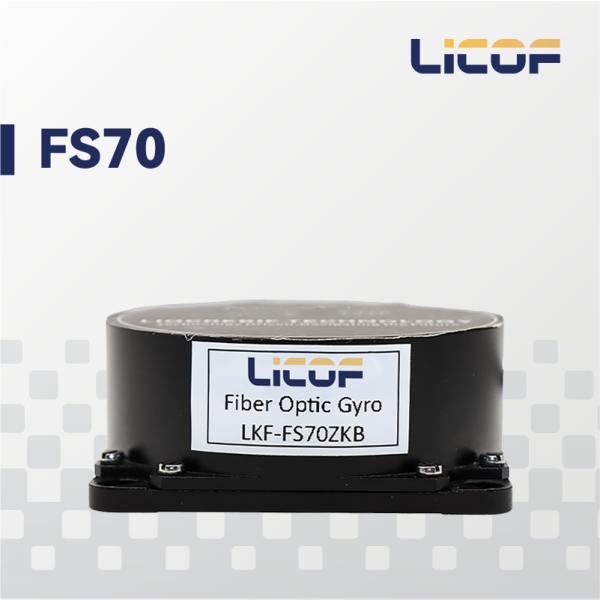

7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
Specifications
Packaging Details :
Wooden box/Cardboard box/Container
Delivery Time :
2-4 weeks
Payment Terms :
T/T
Supply Ability :
10000
Certification :
GJB 9001C-2017
Price :
5000-25000CHY
Bandwidth :
300Hz
Brand Name :
Liocrebif
Model Number :
LKF-FS70
Place of Origin :
China
Working Temperature :
-40℃～+70℃
Bias Stability :
≤0.05°/hr(1σ,10s)
Dimensions :
7*7*2.9cm
Dynamic Range :
±500°/s
MOQ :
1
Random Walk Coefficient :
≤0.005°/h^1/2
Description
7×7×2.9cm Dimensions Inertial Navigation Gyroscope FOG Gyroscopic Devices Single Axis 300Hz
Essential Details

MOQ: 1

Size: L(7)×W(7)×H(2.9) cm

Specification Number: LKF-FS70

Product Introduction

Fiber optic gyro, as a new type of all-solid-state gyro, offers advantages including fast startup, wide measurement range, and high reliability. The LKF-FS70ZK meets application requirements for medium and high precision inertial guidance systems, suitable for land positioning and orientation, vehicle-mounted north finder, airborne air posture, marine gyro compass, and more.

By reducing the outer diameter of fiber to 135μm, the Thin PM fiber solution significantly decreases the size of fiber coils while delivering outstanding precision performance. This technology enables miniaturization of FOGs. The coils are wound precisely using quadrupole symmetry method. These miniatured fiber optic gyros offer excellent advantages of compact design, cost-effectiveness, easy integration, and are ideal for UAV, photoelectric pod, optical platform, and similar applications.

Performance Parameters - LKF-FS70ZK Single-Axis FOG
Parameter Spec A Spec B Test Conditions
Bias Stability °/hr(1σ,10s) ≤0.05 ≤0.03 2h consecutive test, 100s smooth
Bias Repeatability °/hr(1σ) ≤0.05 ≤0.03 Calculated results after 6 tests
Random Walk Coefficient °/h^1/2 ≤0.005 ≤0.003
Scale Factor Non-linearity ppm(1σ) ≤10 ≤10 Normal Temperature
Scale Factor Repeatability ppm(1σ) ≤20 ≤10 Normal Temperature
Scale Factor Repeatability at Full Temperature ppm(1σ) ≤300 ≤200 -40℃～+60℃
Dynamic Range ±500°/s
Magnetic Susceptibility ≤0.02°/hr/Gs
Working Temperature -40℃～+70℃
Storage Temperature -50℃～+70℃
Vibration Condition 4.2g, 20Hz～2000Hz No resonance in the scanning

Note: This series of gyroscope has gas tightness function.

Electrical Interface - J30-15ZK Connector
Pin Pin Definition Sign Wire Color
1 Serial port T+ TX+ Yellow
2 Serial port T- TX- Orange
3 Serial port R+ RX+ Blue
4 Serial port R- RX- Green
5,13 Power +5V +5V Red
6,7 Power GROUND GND Black
Main Features
  • Miniature and compact design
  • Pure solid shell design
  • Environment Adaptive
  • High Reliability and Long Life
  • Fully Digital RS-422 Electrical Output
Applications
  • Electro-optical Pod
  • Flight Control Platform
  • Optical/Photographic Platform
  • Platform Stabilizer
  • Satcom on the Move
  • Inertial Measurement Unit
  • Light UAV
External Structure Dimensions
7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation 7*7*2.9cm Dimensions Single Axis Fiber Optic Gyroscope with 300Hz Bandwidth for Inertial Navigation
