Specifications
Place of Origin :
China
Brand Name :
Liocrebif
Certification :
GJB 9001C-2017
Price :
5000-25000CHY
Model Number :
LKF-MTG200
MOQ :
1
Packaging Details :
Wooden box/Cardboard box/Container
Delivery Time :
2-4 weeks
Payment Terms :
T/T
Supply Ability :
10000
Dimensions :
44.8×38.6×21.5 mm
Weight :
≤50 g
Power supply :
5±0.2 V
Power consumption :
≤1.5 W
Bandwidth :
250 Hz
Update rate :
2KHz
Description
High Bandwidth 3 Axis MEMS Gyroscope Reliable MEMS Inertial Sensor For Navigation
MOQ: 1
Size: L(3.86)*W(4.48)*H(2.15) cm
Specification Number: LKF-MTG200
Product Introduction

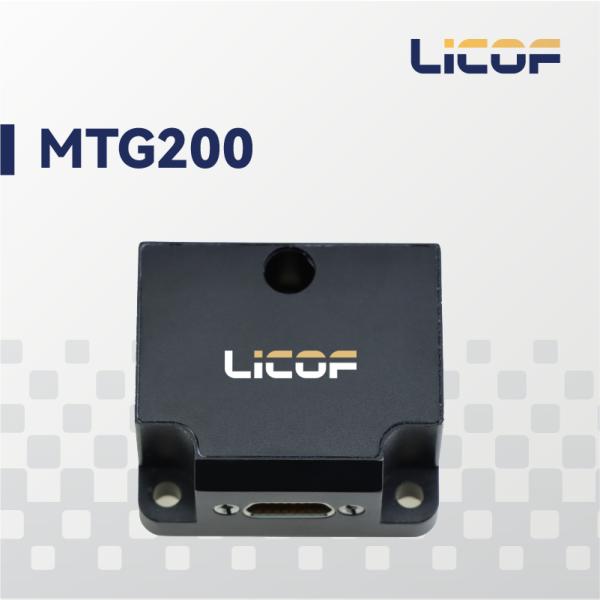

The LKF-MTG200 3-axis MEMS gyro combo is a highly reliable and cost-effective 3-axis MEMS inertial sensor designed for stable control needs. It can be widely used in navigation, control, and measurement applications, particularly for attitude stabilization.

Technical Characteristics
Developed for Stable Control Needs

This MEMS gyroscope features high bandwidth, low latency, and low noise characteristics. The system demonstrates excellent mechanical environment adaptability, providing stable control for complex products.

High-Precision Manufacturing and Calibration

Advanced manufacturing techniques and comprehensive system calibration compensation technologies ensure high product performance. The system employs high-speed sampling, static error compensation (bias, scale factor, installation error across full temperature range), and dynamic error compensation to deliver optimal performance during user operation.

The LKF-MG200 3-axis MEMS gyro combo maintains performance across wide temperature ranges and various vibration environments, delivering accurate angular motion information for stabilizing and controlling servo systems with guide heads.

Performance Specifications
Table 1: LKF-MTG200 Tri-axis MEMS Gyroscope Combination Performance
MEMS Gyro
Model MTG200
Range (°/s) ±500
Bias (°/h, 3σ.full temp.) ≤30
Bias stability (°/h, 10s smoothing) ≤3
Bias stability (°/h, allan) ≤0.1
Bias repeatability (°/h) ≤1
Angular random wandering(°/√h) ≤0.1
Term related to g (°/h/g) ≤0.5
Scale factor nonlinearity (ppm) ≤100
Bandwidth (Hz) 250
System
Power supply (V) 5±0.2
Power (W) ≤1.5
Start-up time (s) 2
Communication interface 1 × RS-422, 1 × synchronous output, 1 × synchronous input
Update rate (Hz) 2KHz
Dimension (mm×mm×mm) 44.8×38.6×21.5
Weight (g) ≤50
Working environment
Operating temperature (℃) -40～80
Storage temperature (℃) -55～85
Vibration (g,Rms) 7.72
Shocks(g) 1000g(1ms)
Table 2: Electrical Interface Of The Gyroscope
Pin Definition Notes
8 POWER_IN 5-12V power supply
15 GND
10 RS422 R+ RS422 interface
2 RS422 R-
9 RS422 T+
1 RS422 T-
13 GND
11 PPS_IN PPS signal input
4 TOV General-purpose input/output (GPIO), 3.3V logic level, triggered on rising edge
12 GND
Main Features
  • 100% localization of components
  • In-situ replacement for STIM210
  • High performance, small size
  • Low weight, low power consumption
  • High bandwidth, low latency
  • -40℃ to +80℃ full temperature calibration compensation
  • 2KHz high speed sampling
  • Resistant to harsh mechanical environments
  • With software online upgrade function
Applications
  • Guide head stabilization
  • Attitude control
  • Photoelectric pods
  • Servo control
  • Stable platform
Outline Structure Dimension Diagram
