Industrial 3-Axis MEMS Accelerometer with ±2g/±4g/±8g Measurement Ranges, 10μg Bias Stability, and Ceramic Package
Industrial 3-Axis MEMS Accelerometer with ±2g/±4g/±8g Measurement Ranges, 10μg Bias Stability, and Ceramic Package
Specifications
Description

Product Overview

The XDA315 is an industrial-grade 3-axis MEMS accelerometer that supports digital output and selectable measurement ranges of ±2g/±4g/±8g. It features low noise, low temperature drift, and excellent long-term stability, making it suitable for various high-precision measurement systems. The XDA315 is integrated in a ceramic package, which provides good long-term stability.

Product Features

High-stability 3-axis MEMS accelerometer

Selectable measurement ranges of ±2g/±4g/±8g

10μg bias stability (Allan variance)

Integrated temperature sensor

Digital output interface

Operating voltage: 3.0V ~ 3.6V

Ceramic package (6 x 6 x 2.2 mm)

Operating temperature range: −40 ~ +85°C

Typical Applications

Structural health monitoring

Condition monitoring

Inclination measurement

Platform stabilization

Robotics

Inertial Measurement Unit (IMU)

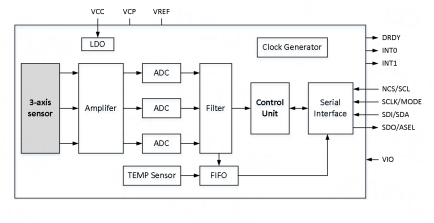

Functional Block Diagram
