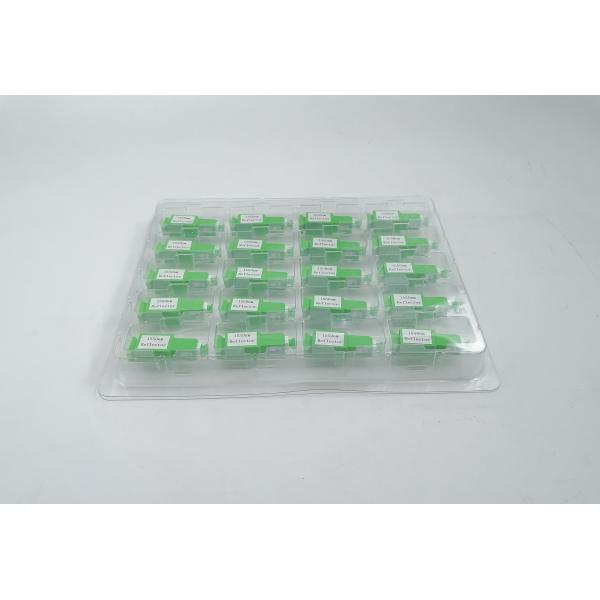

1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
1650nm OTDR FBG WDM Fiber Optic Reflector SC/APC
Specifications
Brand Name :
OEM
Model Number :
OTDR WDM Reflector
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
1650nm OTDR FBG Fiber Optic Reflector
Operation Wavelength :
1650nm
Material :
Plastic / Metal
Connector :
SC/APC male/female
Insertion loss(1260nm-1360nm) :
1.2 dB
Return loss(1260nm-1360nm) :
35 dB
Description

OTDR reflector is located at all the optical network unit (ONU) side of a passive optical network (PON), which will reflect the test signal from the OTDR at the optical line terminal (OLT) side, while the traffic signal of PON system will pass through the reflector with very little loss. OTDR reflector is used to help to increase the sensitivity of the OTDR for checking the optical continuity of a subscriber and troubleshooting.

Features

Low insertion loss and reflectivity at traffic wavelength
High reflectivity at test wavelength
Easy to install
Exceptional reliability and environmental stability
Compatible with GPON, EPON, GEPON

Application

FTTX network

FTTX troubleshooting

Specification

Parameter Specification
Wavelength Rang(nm) Pass Band 1260~1360&1460~1600&1600~1625
Reflection Band 1644.5~1655.5
Insertion Loss (dB) Pass Band @1260-1360 ≤1.4
Pass Band @1460-1600 ≤1.4
Pass Band @1600-1625 ≤3.4
Reflect Band @1644.5~1655.5 ≥21
Return Loss(dB) Reflect Band @1260-1360 ≥35
Reflect Band @1460-1600 ≥30
Reflect Band @1600~1625 ≥20
Reflect Band @1644.5~1655.5 ≤1.0
Polarization Dependent Loss(dB) ≤0.3
TDL (dB) ≤0.5
Ripple (dB) ≤0.5
Maximum Optical Power Handing (dBm) 27
Plug Times (Times) 500
Input/Output Connectors *SC/APC

*Note: SC/UPC, LC/UPC and LC/APC type are all available on request.
