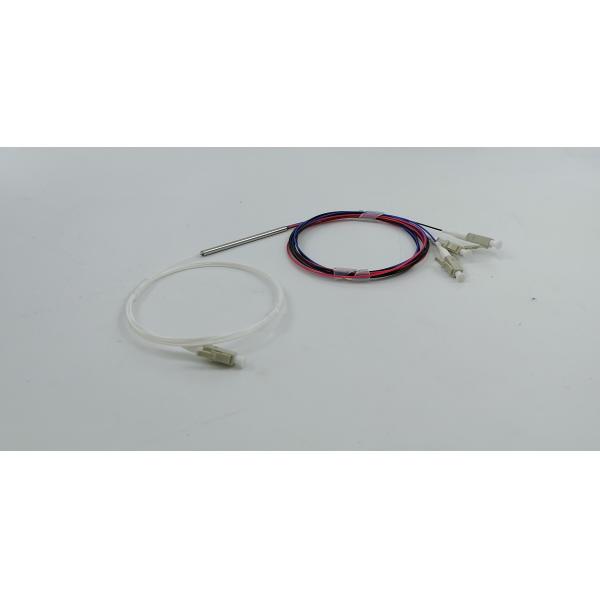

1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
1х3 OM3 Multimode Fused Fiber Coupler Splitter 850nm LC/UPC 50/25/25
Specifications
Brand Name :
Unifiber or OEM
Model Number :
1x3 MM Coupler
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
1x3 MM Optical Coupler
Wavelength :
850nm
Fiber Type :
Multimode OM3
Connector :
LC/PC
Configuration :
1x3
Splitting ratio :
50/25/25
Description

1xN(NxN) Monolithic Multi-Mode Couplers comply with Telcordia 1209/1221and RoHS. All our FBT Couplers have to pass 48 hours of high (85℃) and low (-45℃) temperature circulation before delivery. Multimode fiber coupling features low insertion loss, high stability and reliability and compact size.

Features

Low Excess Loss
Single Fusion Design
Uniform Power Splitting
Compact Size

Application

Optical communication systems

CATV
Local Area Networks
Testing instruments
Specification
Parameter Unit Specification
Operating Wavelength nm 850
Type 1x3
Coupling Ratio % 50/25/25
Insertion Loss dB ≤3.8/7.0/7.0
Directivity dB ≥40
Dimensions mm OD 3.0 x 54
Fiber OM3 50/125
Fiber Length m 1.0±0.1
Pigtail Type um 900(White@IN；White@OUT1;Red@OUT2;Blue@OUT3)
Connector / LC/UPC
Operating Temperature ℃ -20~85
Storage Temperature ℃ -40~85
