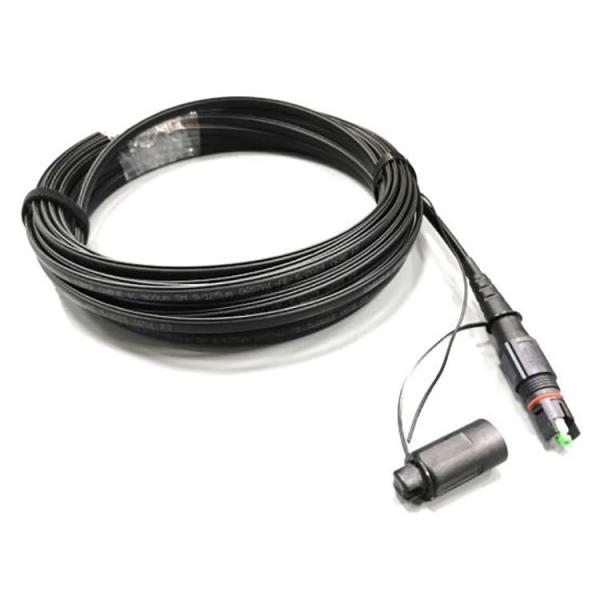

FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
FTTH Corning Opti-Tap Toneable Flat Drop Fiber Cable Patch Cord
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Optitap Patch Cord
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
Optitap Patch Cord
Connector :
Optitap SC/APC
Fiber Type :
G657A1
Cable Jacket :
LSZH
Cable Diameter :
4.5*9.8mm
Fiber Counts :
1F
Description

Opti-Tap connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.

Features:
Compatible with Corning-Opti-Tap
Factory terminated for high performance;
Available with one or both ends connectorized;
Hybrid (one end with an OptiTap Connector, one end No connector) available with or without pulling grip;
Available in dielectric or toneable;
Designed for aerial, direct-buried or duct installation;
IP-68 water and dust protection ;
-40℃~85℃ operating temperature;

Application:
Fiber optic communications in harsh outdoor environments.
Outdoor communication equipment connection.
Waterproof Fiber Equipment.
Remote wireless Base Station.
FTTx ISP Project.

Specification

No.
Items
unit
Performance Specification
G.657A1
1
Cladding Diameter
μm
125.0±0.7
2
Core-cladding concentricity
μm
≤0.5
3
Cladding non-circularity
%
≤0.7
4
Coating Diameter
μm
242±5
5
Cladding -coating concentricity
μm
<12.0
6
Mode field Diameter
1310nm
μm
8.6±0.4
1550nm
μm
9.8±0.5
7
Fiber Cutoff Wavelength
nm
λcc≤1260

Construction
Fiber Count(1)
1fibers(simplex)
Fiber Mode
Single mode: G.657A1 9/125µm
Connector Type End A
OptiTap Connector(SC APC)
Connector Type End B
No connector
Connector Ferrule
Zirconia Ceramic
Cable Jacket ratings
LSZH
Cable Type
Flat Drop cable toneable
Cable Jackets color
Black
Cable Diameter
4.5*9.8mm
Temperature
-40°C to +85°C
