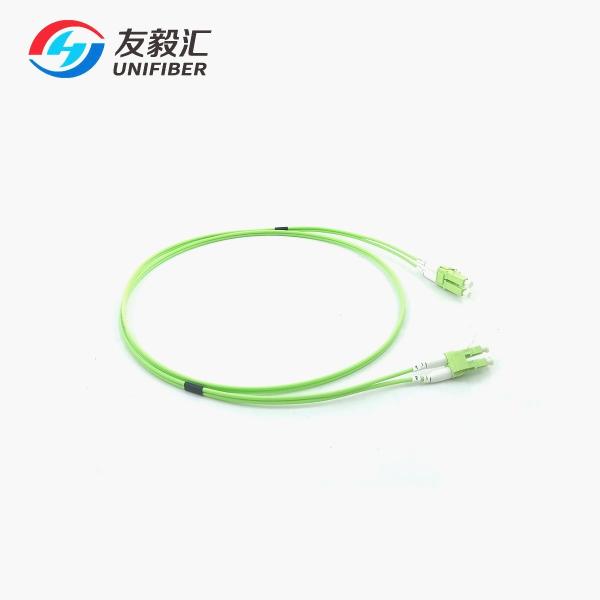

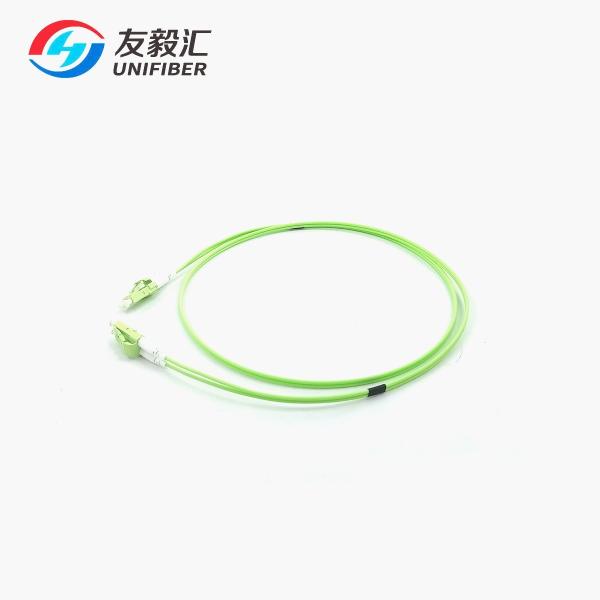

LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
Specifications
Brand Name :
Unifiber or OEM
Model Number :
OM5 Fiber Patch Cable
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
OM5 Fiber Patch Cable
Connector :
LC/C
Fiber Type :
Multimode OM5
Jacket material :
LSZH
Jacket Color :
Green
Length :
Customized
Description

OM5 is a wideband multimode fibre, identifiable by a lime green outer jacket on duplex fibre cables.It has many of the same characteristics of OM4, including the same EMB value and distance limitations for 10GB, 40GB, and 100GB Ethernet. OM5 is intended for data centres and high speed applications that require shortwave division multiplexing (SWDM).

Features

Backward compatible with OM3 and OM4 applications
For 40/100 Gb speeds up to 300 meters (at 850 nm)
Rated OM5 to offer a wideband 50/125 multimode fiber solution
Laser-optimized for use with cost-effective VCSEL light sources
Lime green jacket for easy OM5 identification;
Application
Data Center Application
Telecommunication
40G/100G solutions
Specification
Parameters
LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag
*All values specified are with connectors.
