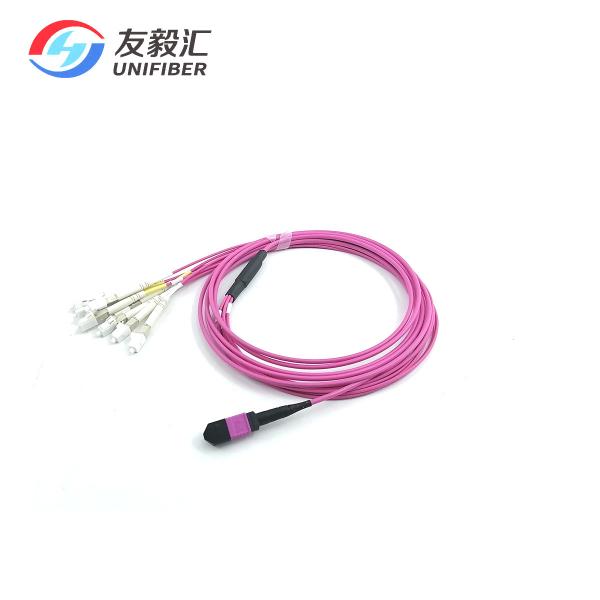

8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
Specifications
Brand Name :
Unifiber or OEM
Model Number :
MPO to LC Breakout Patch Cable
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
MPO Patch Cord
Fiber Cores :
8 Core
Fiber Type :
Multimode OM4
Connector :
MPO female
Jacket Color :
Violet
Jacket Material :
LSZH
Length :
Csutomized
Description

UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Specification

Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60
MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20
LC/SC/FC/ST
SM
APC
≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30

8 Fiber MPO to 4xLC Duplex Breakout Patch Cord Multimode OM4 1m 3m 5m
