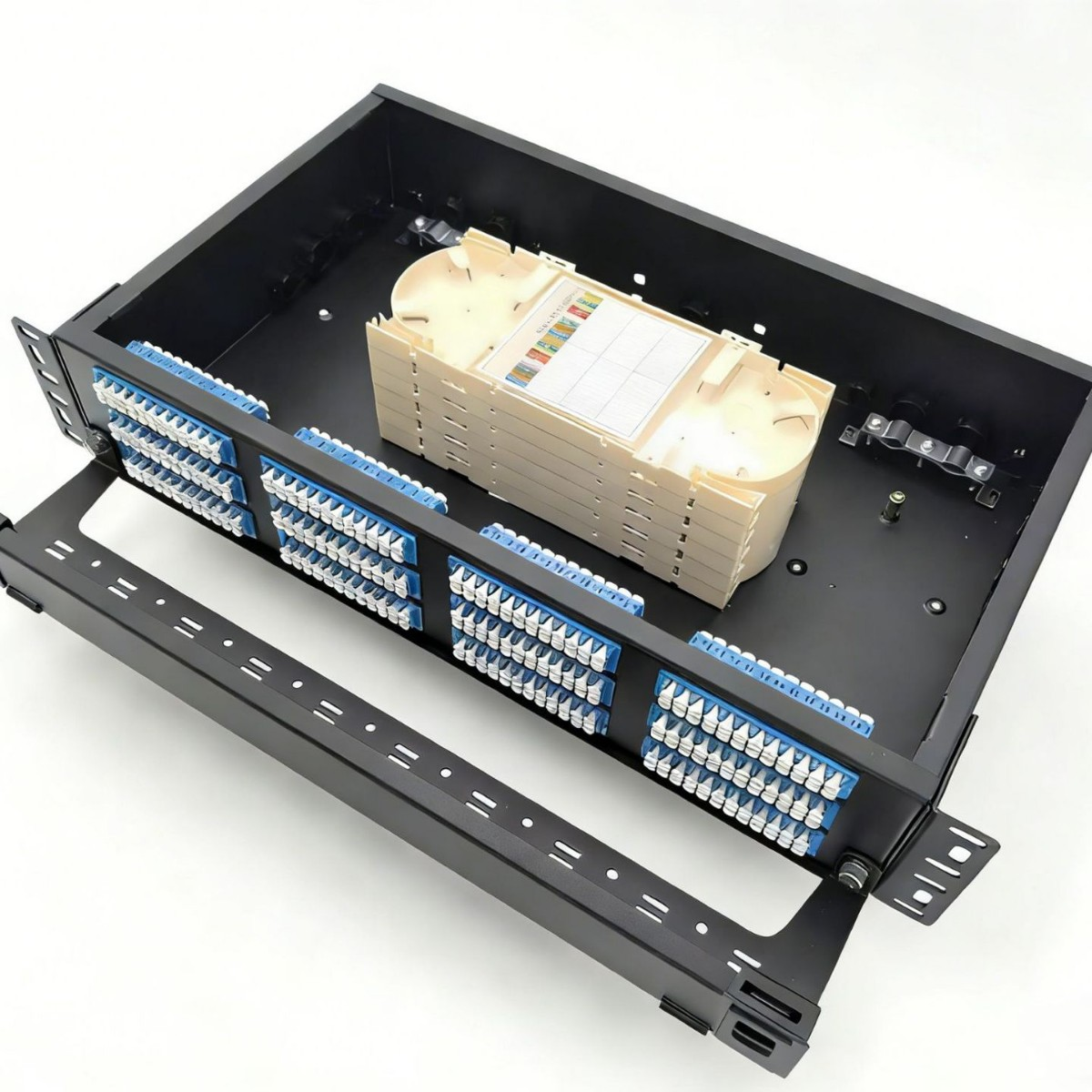

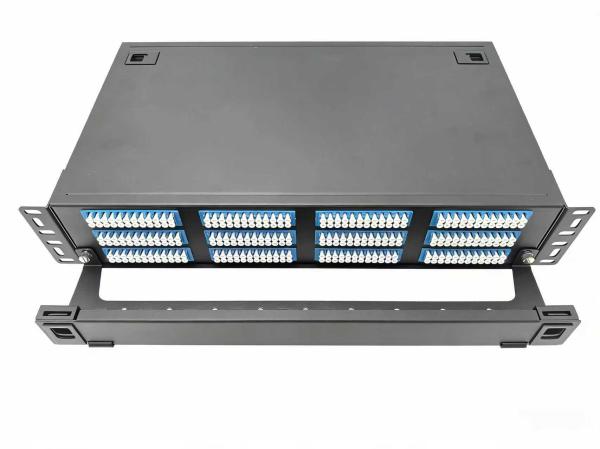

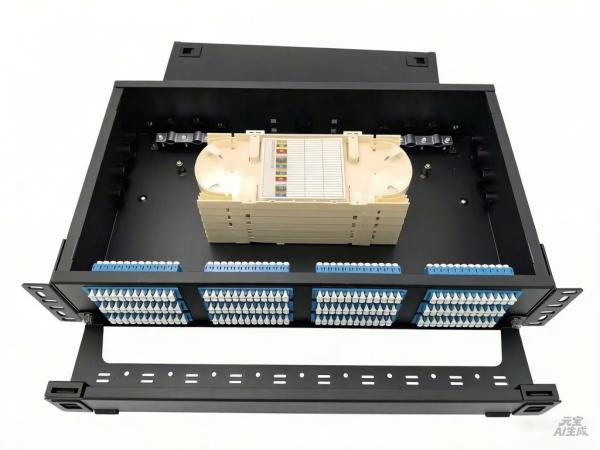

2U High Density 288 Fiber ODF Fiber Optical Patch Panel
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
Specifications
Brand Name :
Unifiber or OEM
Model Number :
2U 288 Port Fiber Optic Patch Panel
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
5~8days
Packaging Details :
Carton
Dimension :
2U 288 Port
OEM brand :
Support
Fiber Mode :
SM or MM
Installation :
19" Rack Mount
Application :
Data Center
Material :
Cold Rolled Steel
Painting color :
Black
Adapter Type :
LC
Description
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
This 2U high density fiber optic patch panel is engineered for high-capacity fiber management in data centers and telecommunications networks. With a maximum capacity of 288 fibers, it delivers an efficient, space-saving solution for high-density cabling environments.
The rack-mounted fiber distribution box features a modular structure and fast-open design, enabling straightforward installation, maintenance, and cable management. It supports splice modules, adapter panels, and MPO modules, providing flexible integration into diverse network architectures for scalable data center and high-speed fiber applications.
Constructed from high-quality cold rolled steel with electrostatic powder coating, this fiber ODF ensures exceptional durability, stability, and long-term performance in demanding operational conditions.
Key Features
  • High density design supporting up to 288 fiber capacity
  • Compatible with splice, adapter, and MPO modules
  • 2U rack mount structure for space efficiency
  • Fast-open design for easy access and maintenance
  • Modular design enabling flexible configuration
  • Compatible with SC, LC, FC, and ST adapters
  • Efficient cable management system
  • Durable cold rolled steel construction
  • Electrostatic powder coating for corrosion resistance
  • Front access design for convenient operation
  • Suitable for high-performance fiber networks
  • OEM and customized design options available
Applications
  • Data centers and cloud infrastructure
  • FTTH (Fiber to the Home) networks
  • Telecom and broadband networks
  • ISP (Internet Service Provider) installations
  • Structured cabling systems
  • Enterprise network solutions
  • Fiber optic communication systems
Technical Specifications
Product Name High Density Fiber Optic Patch Panel
Rack Unit 2U
Max Capacity 288 Fibers (LC Adapter Panel/LC Splice Module/MPO-LC Module)
Adapter Type LC/SC/ST/FC
Material Cold Rolled Steel
Surface Treatment Electrostatic Powder Coating
Color Black
Installation Type Fixed (fast-open)
Design High Density
Packaging Carton Box
2U High Density 288 Fiber ODF Fiber Optical Patch Panel
