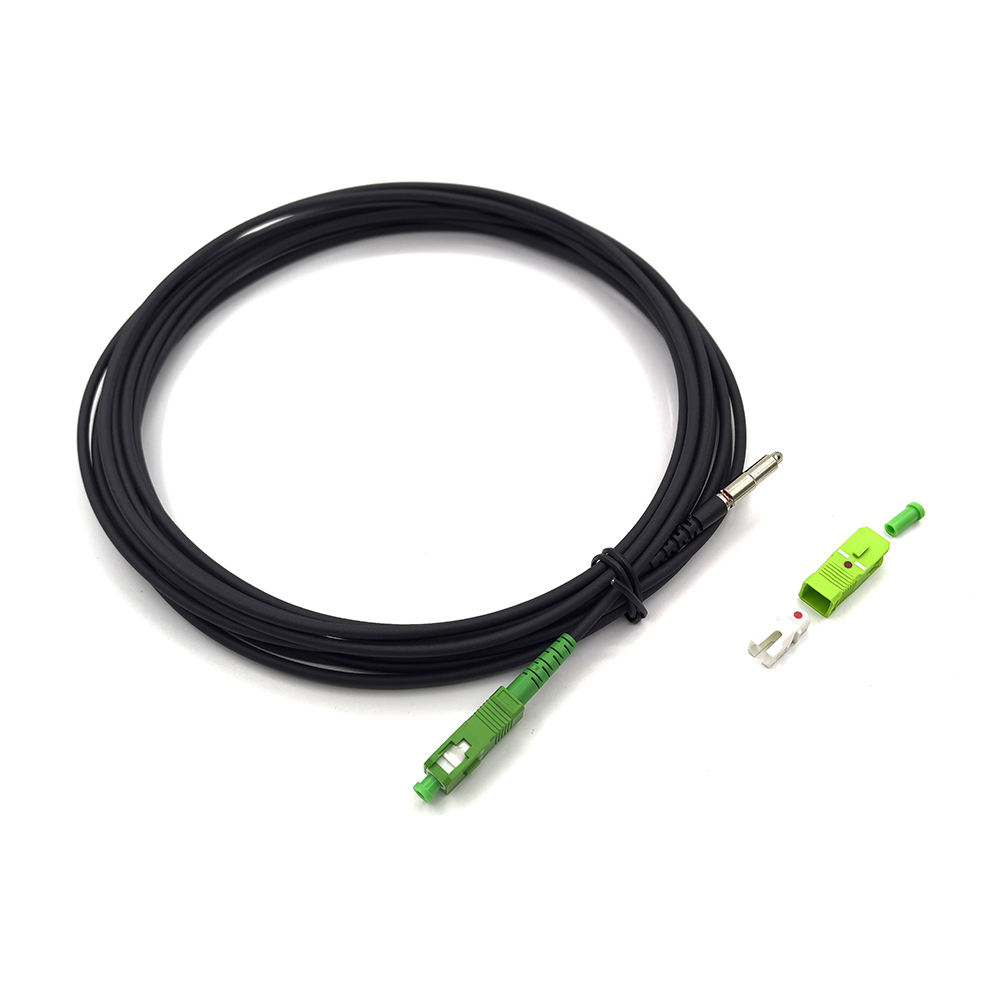

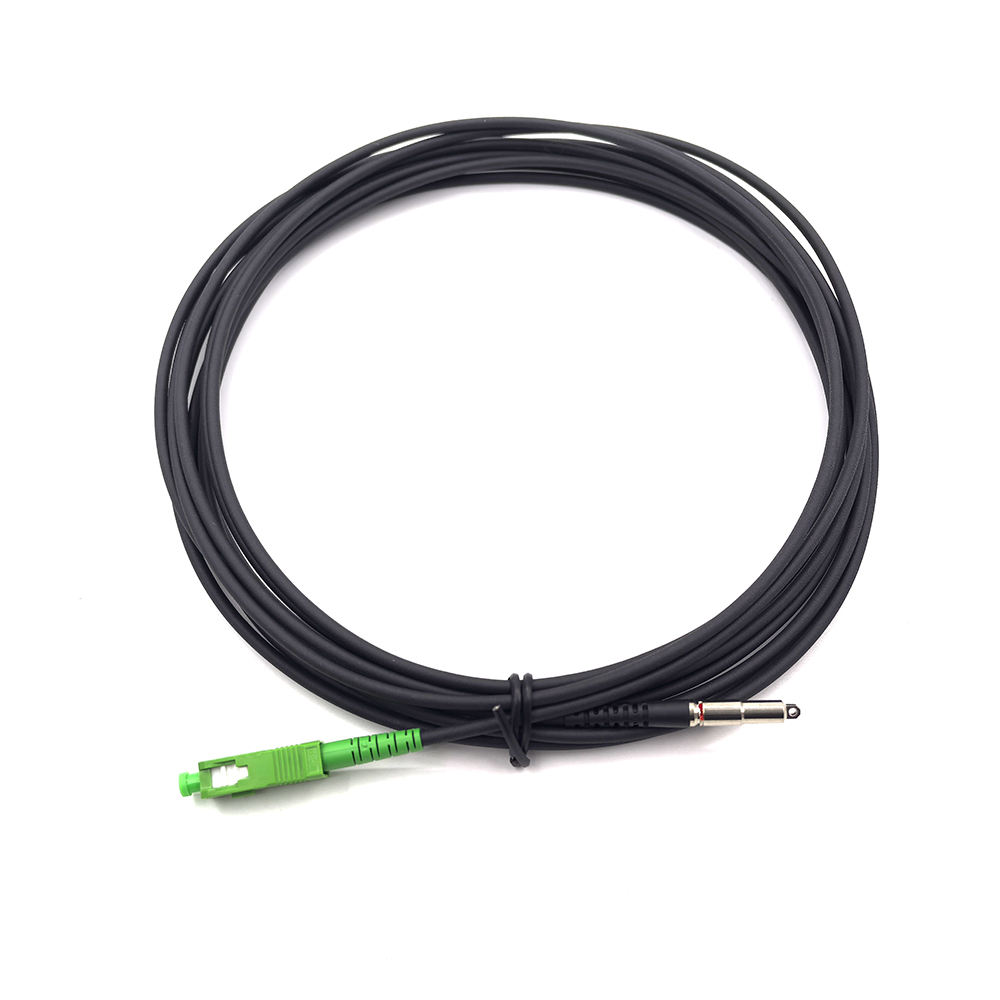

Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Specifications
Payment Terms :
L/C, T/T
Connector :
MTC-Bullet SCAPC
Model Number :
MTC-SC Through-wall Bullet SCAPC Drop Cable
Delivery Time :
5~8days
Place of Origin :
CHINA
Supply Ability :
1000pcs/day
Packaging Details :
Carton
Fiber Type :
G657a2
Cable Jacket :
Black LSZH
Use for :
Through wall/conduit
Brand Name :
Unifiber or OEM
Certification :
ROHS
Price :
Negotiable
Cable Size :
3.0mm Round cable
MOQ :
10
Description

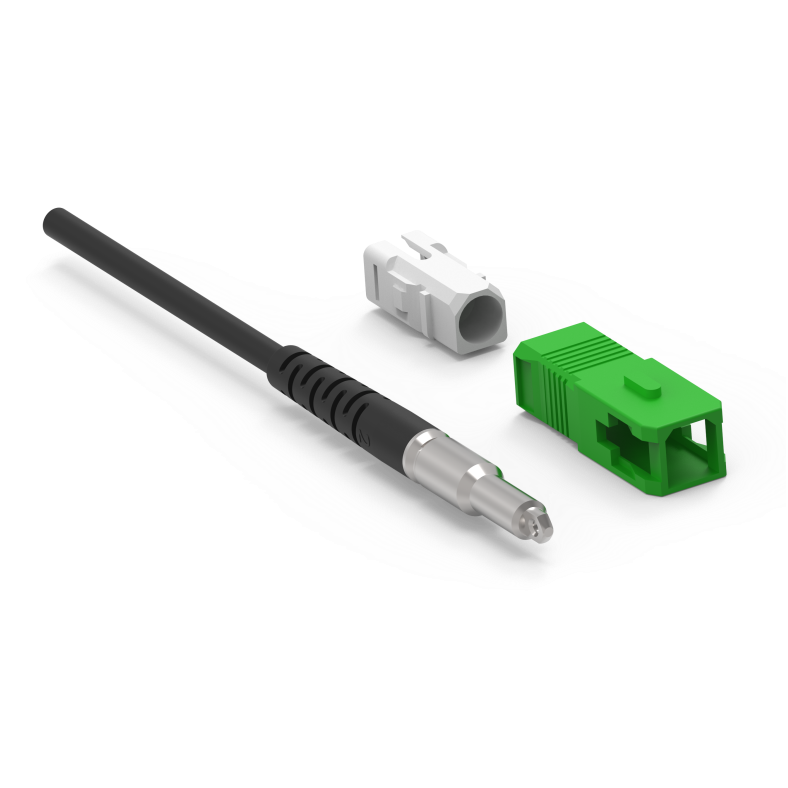

Pullable MTC-SC Through-wall Bullet SC/APC Pre-connectorized FTTH Drop Patch Cord
FTTH MTC/SC-SC/APC Pre-connectorized Push and Pull Drop Rush Cable designed for through-wall and conduit installations. This Bullet SC/APC connector can be threaded through pipes with inner diameter greater than 6mm. As the final cable in FTTH projects, it connects FAP boxes, FTB, FDB, face plates, and ONU/ONT equipment with easy fiber accessibility and simple installation.
Key Features
  • Metal protected mounting head, compatible with 2.8mm round cable
  • Designed for small pipelines or small wall holes
  • Available in both singlemode and multimode fiber with UPC and APC polishing
  • Fast installation requiring no special tools
  • Multiple installation methods available
Applications
  • Telecommunication systems
  • FTTR (Fiber to the Room)
  • CATV networks
  • LAN & WAN infrastructure
  • Network broadband
  • Building and home cable installation

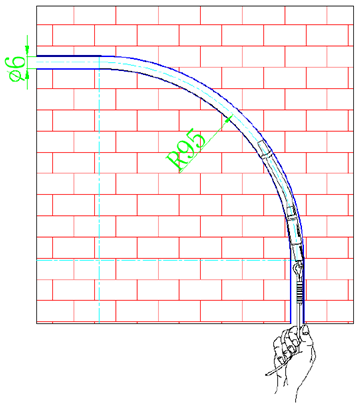

Bullet SC/APC Connector Application
Compatible Requirements
Suitable for pipes with inner diameter greater than 6.5mm and radius greater than 95mm
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord

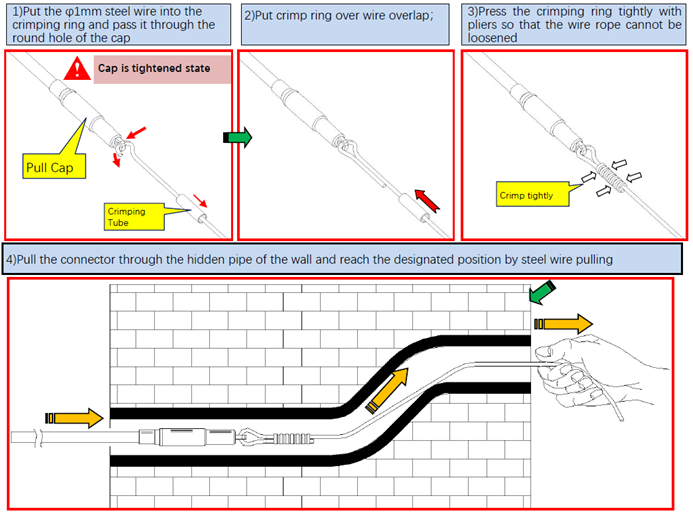

Pipe Threading Installation
How to thread through pipe in wall
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord

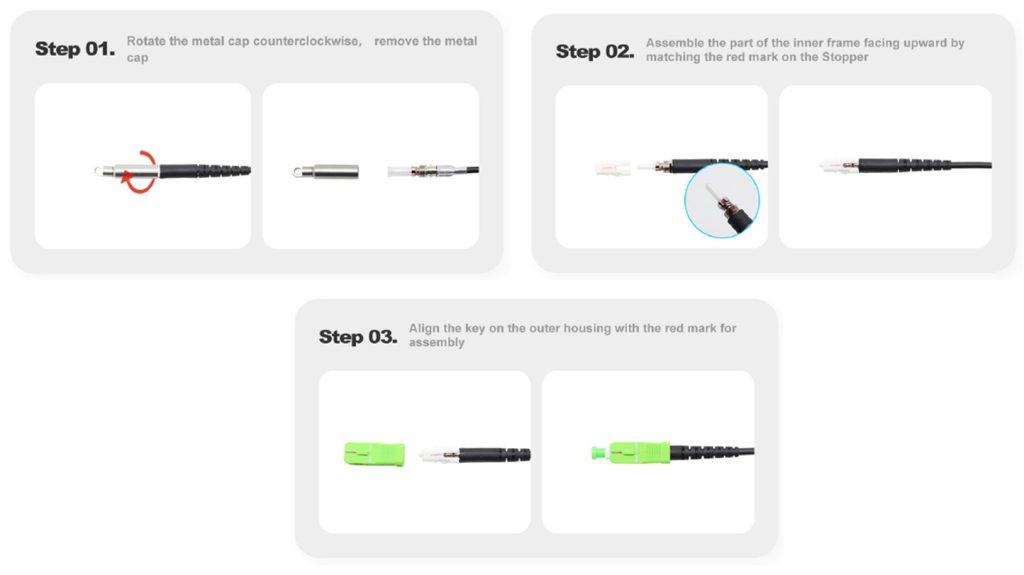

Field Assembly Process
How to assemble in FTTH construction site
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
Technical Specifications
Items Singlemode Multimode
Insertion Loss <0.2dB <0.3dB
Return Loss >45dB (PC)
>50dB (UPC)
>60dB (APC)		 >35dB
Durability <0.1dB typical change, 500 matings
Ferrule Concentricity <1μm & <0.5μm <4μm
Ferrule Inner Diameter Tolerance 125.0+1/-0μm & 125.5+1/-0μm 126+3/-0μm & 127+3/-0μm
Operating Temperature -40 to +75°C
Housing Color Blue/Green/Beige/Aqua/Pink
Boot Color Black, White, Red, Green
Cable 2*3mm FTTH drop cable, 3.0mm Round cable
Pullable MTC-SC Through-wall Bullet SCAPC pre-connectorized FTTH Drop patch cord
