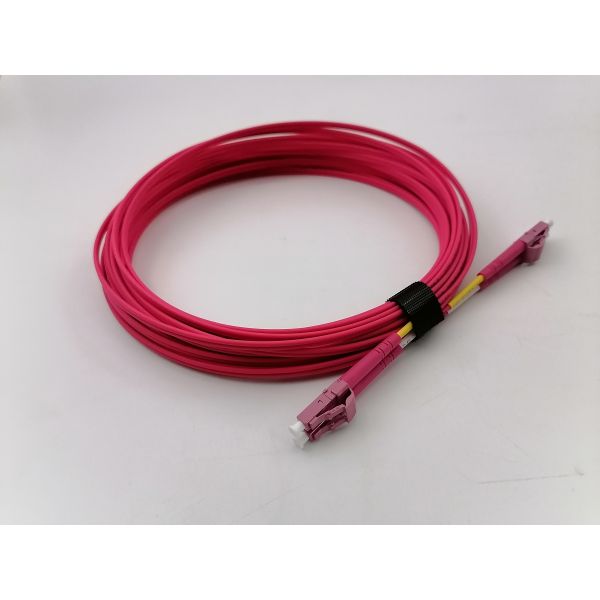

OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um
OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um
OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um
OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um
Specifications
Brand Name :
Unifiber or OEM
Model Number :
OM4 Duplex LC Fiber Patch Cord
Certification :
ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/day
Delivery Time :
3~5 days
Packaging Details :
PE bag
Product :
OM4 50/125um Duplex LC/UPC-LC/UPC Fiber Optic Patch Cord 5M
Connector :
LC/UPC Duplex
Fiber type :
OM4
Cable Jacket :
LSZH
Length :
1/2/3/5m.. or Customized
OEM brand :
Support
Description

The LC connectors used for our patch cords are fully compatible with existing LC hardware. Two simplex connectors can be configured into a duplex format by adding a duplex clip. Other than standard single mode and multimode fibers, G655, OM2, OM3 and OM4 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.

Features:

- 50/125 um, Multimode
- OM4-fiber for 10 Gigabit/s up to 550 m
- future-proof cabling for 40 Gigabit/s and 100 Gigabit/s
- 2x LC connectors to 2x LC connectors

Specification:

Model Name
OM4 50/125um Duplex LC-LC Fiber Optic Patch Cord 5M
Fiber Type
Multimode (OM4)
Cable Assembilies
Duplex
Jacket Material
PVC (LSZH Negotiable)
Cable Diameter (mm)
2.0/3.0mm
Connector Type
SC or LC
End Face
PC
Working Wavelength (nm)
850/1300
Insertion Loss (dB)
≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)
UPC ≥35dB
Exchangeability
≤0.2dB
Operating Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85


OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um

Product tags

pvc lszh cable

,

lc-lc multimode fiber patch cord

,

mpo fiber optic patch cord
Send your message to this supplier
Send Now

OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um

Ask Latest Price
Product Detail
Brand Name :
Unifiber or OEM
Model Number :
OM4 Duplex LC Fiber Patch Cord
Certification :
ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Contact Supplier
OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um
OM4 Duplex Fiber Optic Patch Cord PVC LSZH 5M LC LC 50/125um

Shenzhen Unifiber Technology Co.,Ltd

Verified Supplier
7 Years
guangdong, shenzhen
Since 2006
Business Type :
Manufacturer
Main Products :
Fiber Optical Patch Cord, MPO MTP Patch Cord, Fiber Cable Assembly
Total Annual :
5000000-8000000
Employee Number :
100~200
Certification Level :
Verified Supplier
