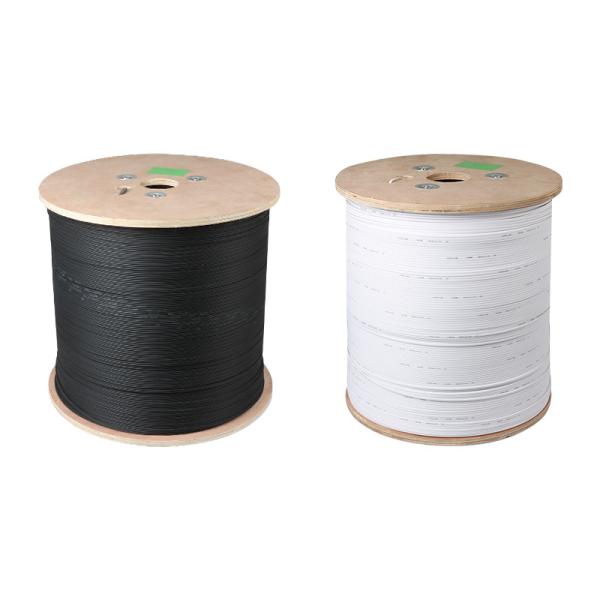

1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
1 2 4 Core Outdoor FTTH Drop Cable G657A2 Black LSZH Jacket Flame Retardant
Specifications
Brand Name :
Unifiber or OEM
Model Number :
1 2 4 Core Outdoor Ftth Fiber Drop Cable
Certification :
ROHS
Place of Origin :
China
MOQ :
10km
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500km/day
Delivery Time :
3~5 days
Packaging Details :
wooden drum
Product :
1 2 4 Core Outdoor Ftth Fiber Drop Cable
Fiber cores :
1/2/4 fiber
Fiber type :
G657A1 or G657A2
Dimension :
2.0*5.0mm Flat
Package :
1~2km per roller
Jacket :
Black LSZH
Description

1 2 4 Core FTTH Flat Outdoor FRP Fiber Drop Cable G657a2

Features

●Good mechanical and environmental characteristics;
●Flame retardant characteristics meet the requirements of relevant standards;
●The mechanical characteristics meet the requirements of relevant standards;
●Soft, flexible, easy to splice, and with big capacity data transmission;
●Meet various requirements of market and clients.
●Used in indoor cabling, and end users directly cabling;
●Used as access building cable.

OUTDOOR

INDOOR
Specification
Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.36 1550nm:≤0.22
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as required
