Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
Specifications
Brand Name :
Unifiber or OEM
Model Number :
3-Port Optical Circulator
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
50~60$
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 days
Packaging Details :
PE bag
Product :
Three port Fiber Optic Circulator
Configuration :
Port 1 to Port 2 to Port 3
Operating Wavelength :
1310nm 1550nm C Band L Band C+ L Band
Fiber Type :
Corning SMF-28
No of Ports :
3 Port or 4 Port
Connector :
FC/UPC FC/APC or Custom
Description

Description of Polarization Insensitive 3-Port Optical Circulator

1310nm, 1550nm 3 Port Polarization Insensitive Optical Circulator that couple light from Port 1 to 2 and Port 2 to 3 and have high isolation in other directions. it widely used in bi-direction optical network communication system.

Features

Small Package Size
Low PDL

Low Insertion Loss
High Channel Isolation

Highly Stable & Reliable
Epoxy-free Optical Path

Application

Wavelength Add/Drop

Optical Amplifier
Metro Area Network
Dispersion Compensation

Parameters

Product
Polarization Insensitive 3-Port Optical Circulator
Configuration
Port 1 to Port 2 to Port 3
Operation Wavelength (nm)
1310±30 or 1550±30
Insertion Loss (dB)
Typical
0.6
Maximum
0.8
Typical Isolation (dB)
≥50
Minimum Isolation (dB)
≥40
Cross Talk (dB)
≥50
Polarization Dependent Loss (dB)
≤0.15
Polarization Mode Dispersion(dB)
≤0.1
Return Loss(dB)
≥50
Power Handling (mW)
300
Opterating Temperature (℃)
-10~+75
Package dimension (mm) (Steel tube)
Φ5.5xL50
Package dimension (mm) (ABS box)
90x20x10

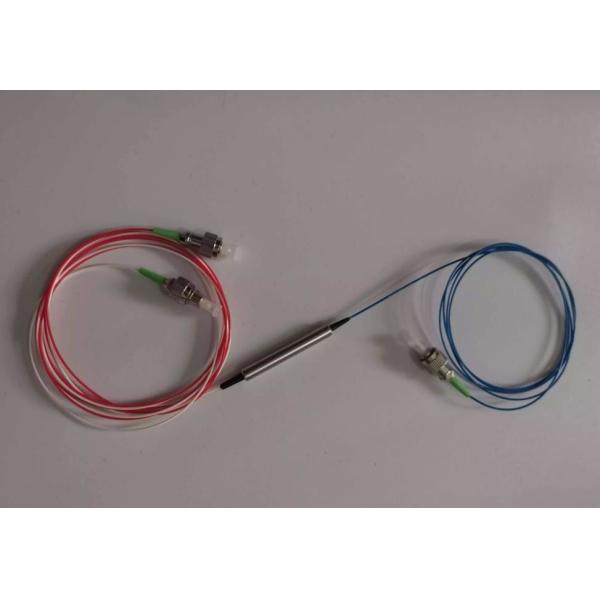

Picture of 1310nm 1550nm 3-Port Polarization Insensitive Fiber Optical Circulator

Polarization Insensitive 3 Port Optical Circulator 1310nm 1550nm Wavelength Add/Drop
