FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Fiber Pedestal
Certification :
ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 days
Packaging Details :
Carton box
Product :
Fiber Pedestal
Material :
HDPE
Fiber Counts :
8/16/32 core
Color :
Green
Installation :
On the Ground
Application :
FTTX
Description

Description of FTTH Outdoor ODP Fiber Pedestal 16/32 core Optical Distribution Box For Telecom

The round green ODP is the access point in the optical fiber access network, which is mainly used for the protection and management of the optical fiber nodes in the FTTx network, and mainly used for outdoor installation. passive optical network.

Features
High Density Polyethylene Material(HDPE)

Simple and clearly arranged cable management .
Outdoor Pedestal with Water-proof function.


Introduction
The Fiber DistributionPoint provides everything necessary to manage distribution fibers for an outside plant

FTTx application on the street.
The Fiber Distribution Point can accommodatefiber optic splitterinside of the plastic cover. It protects the splicingpoint from
outside environment.
The design and layout of the cable guides promote an efficient and ordered positioning of the cable with main body.
Placement of the incomingcables allows convenient access for installation,maintenanceand subsequent terminationof additional
secondary cable.
All components of the Distribution Point will be of high quality design, workmanship and finish

Specification

Dimention
Diameter 250mm, height 650mm
Function:
wet-proof ,water-proof, dust-proof,anti-aging
Input / Output Dia
20mm
Protection Level:
IP 65
Installation type
On the Ground Pedestal
Life of insertion and extraction: >1000 times
Material
HDPE
Main technical datasheet:Insertion loss:≤0.2dB

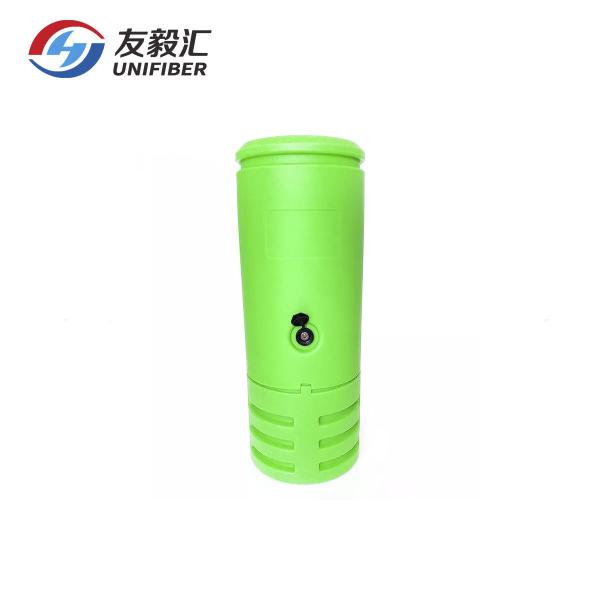

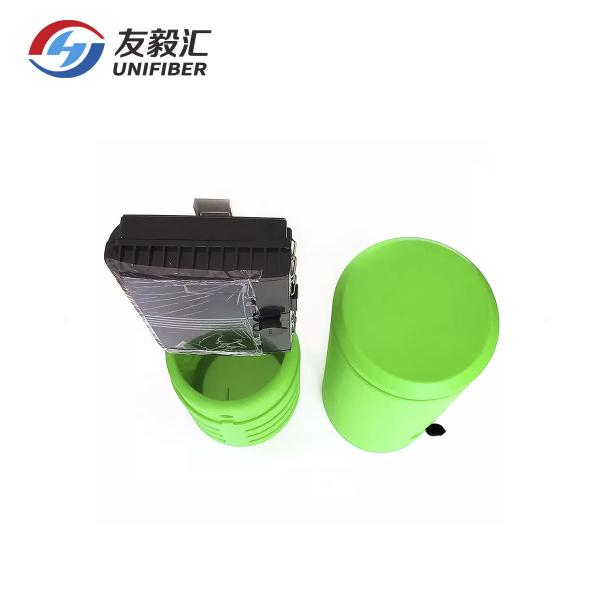

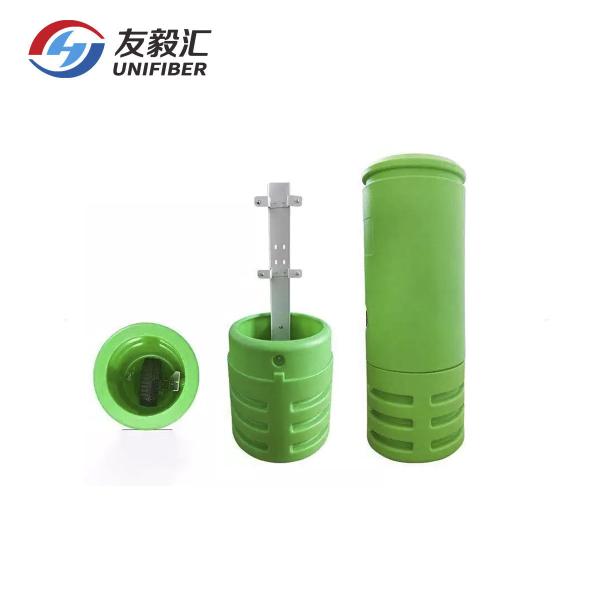

Picture of Telecom Fiber Optic Pedestal

FTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For TelecomFTTH Outdoor ODP Fiber Pedestal 16/32 Core Optical Distribution Point For Telecom
