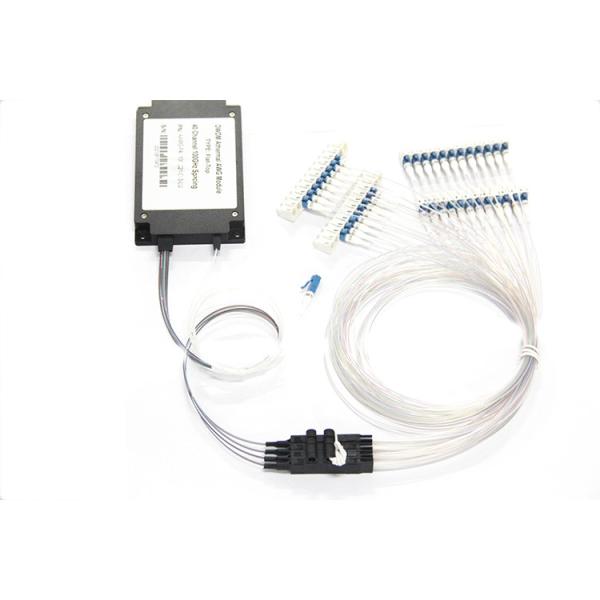

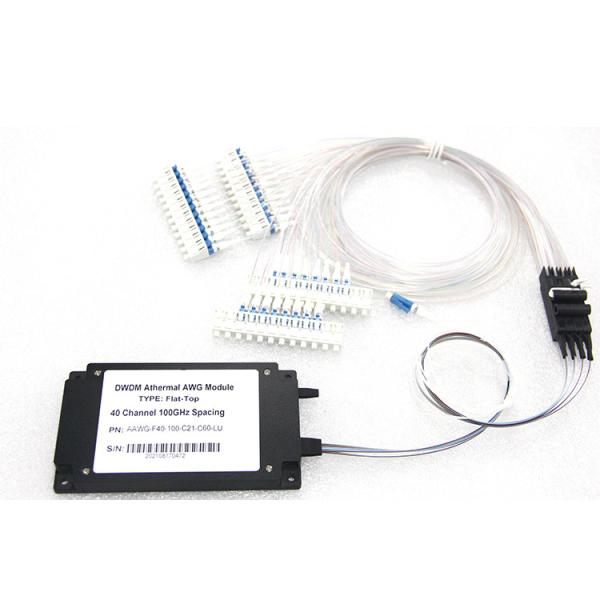

40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
Specifications
Brand Name :
Unifiber or OEM
Model Number :
AAWG Athermal AWG Module
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 days
Packaging Details :
Carton box
Product :
40CH 48CH 100G DWDM AAWG Athermal AWG Module Flat Top/Gaussian
Number of Channels: :
40/48/96 channels
Wavelength :
C-Band, L-Band, C+L-Band or Customized
Channel spacing :
50GHz 100GHz 200GHz
Filter Shape :
Flat Top or Gaussian
In/Out Connector :
LC/UPC
Fiber length :
0.5m, 1m ,1.5m 2m
Package :
Module or Rack Mounted
Description

40CH 48CH 100G DWDM Mux Demux AAWG Athermal AWG Module Flat Top/Gaussian

Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.

These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Unifiber’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Features:

~ 40CH 100G AWG Moduie (40CH 100G DWDM Mux Demux)

~lnsertion Loss Ripple:1.0db

~Optical Returnloss:40db

~Band: C-Band, L-Band, C+L-Band, Customize is optional

~Number of Channeis:16CH,32CH,40CH,48CH,Special is optional

~Spacing:50G,100G,200G,Special is optional

~Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional

~Package: Module, Rack, Special is optional

~Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional

~ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional

Parameter Unit Gaussian Flat-Top
Channel Wavelength (nm) nm ITU 100 GHz Grid
Number of channels - 16,32,40,48 or other
Wavelength Accuracy (nm) nm ± 0.05
Insertion Loss (dB) dB < 4.5 < 6.0
Channel Passband (@-1dB bandwidth) nm > 0.2 > 0.3
Channel Passband (@-3dB bandwidth) nm > 0.4 > 0.5
Total Crosstalk(dB) dB > 20 > 23
Channel Ripple (dB) dB < 0.75
Isolation(dB) Adjacent dB > 25
Non-adjacent dB > 30
Max. Uniformity dB 1.2
Chromatic Dispersion ps/nm -20~+20
Max. Polarization Dependent Loss dB 0.5
Max. Polarization Mode Dispersion ps 0.5
Min. Directivity dB > 50
Min. Return Loss dB > 45
Maximum Power Handling mW 300
Fiber type - SMF-28e or other
Operating Temperature °C -5 ~+70
Storage Temperature °C -40 ~+85
Dimension mm L120 x W70 x H12
19" 1U Rack mount:431.5*250*44


40CH 48CH 100G AAWG Athermal AWG Module DWDM Mux Demux Flat Top Gaussian
