Vertical DOME Iber Optic Enclosures Outdoor 4 In 4 Out Aerial / Pole / Wall Mount
Vertical DOME Iber Optic Enclosures Outdoor 4 In 4 Out Aerial / Pole / Wall Mount
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
carton box
Type :
DOME Type(Vertical Type)
Cable Diameter :
Ф7-Ф42
Number of Splice Trays :
Ф230mmx550mm
Number of Inlet/Outlet Ports :
6 round ports and 1 oval port
Weight :
2.7kg
Splitter :
1x16/1x32 mini PLC splitters
Description

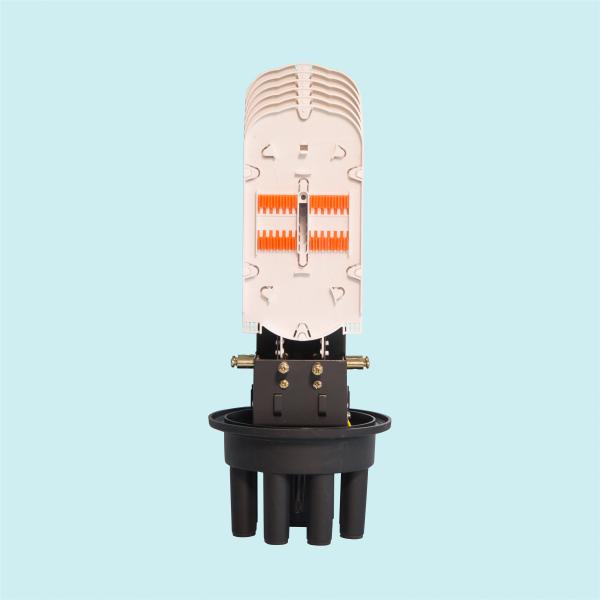

GJS-M7-RS dome closure is used in aerial,duct,wall-mounting,pole mounting applications, for the straight-through and branching splice of the fiber cable(Ф7-Ф42). It has heat shrinkable sealing structure with 7 entrance ports on the end (6 round ports and 1 oval port).

Product Feature:

  • The body adopt modified plastic MPP,which is high strength and corrosion resistance,has longer lifetime and excellent sealing performance.

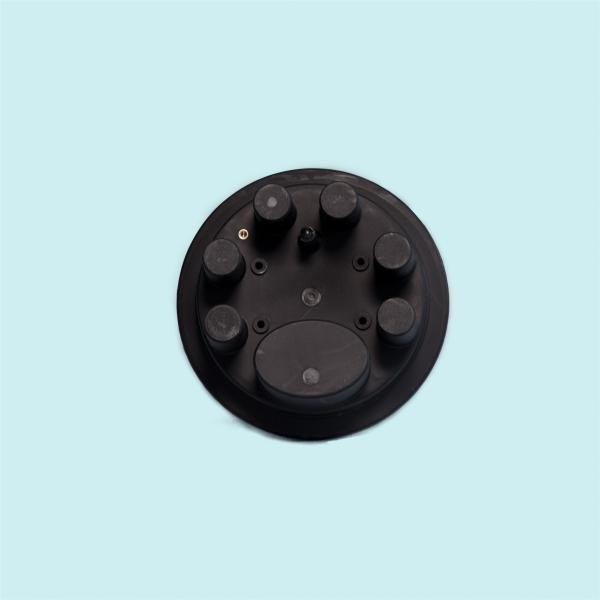

  • It has 7 cable ports in total,6 Φ20mm round cable ports,and 1 oval port which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables,as well as for few small size cables at the same time.
  • The closure can be reopened,which is maintenance friendly.It can work well in the environment of -40℃～＋65℃ and guarantee the good sealing performance.
  • Voltage Strength:under 15KV direct current,without breakdown or flashover phenomenon.
  • Insulation Resistance:≥2×104MΩ
  • Tensile Force:≥800N
  • Leakproofness:inflate the closure,making internal pressure to 100Kpa,then put the closure into the water over 15min,without any bubbles or pressure drop happened.
  • Impact Strength:can bear 16N.m.after 3 impact times,there is no crack on the body.
  • Size DxH:Ф230mmx550mm
  • Weight:2.7Kg
  • Oval port diameter:Φ42mm;round port diameter:Φ20mm
  • Max capacity:144cores,6pcs 24c splice tray.
  • Splitting:1x16/1x32 mini PLC splitters and 18pcs/36pcsSC adaptors
  • Assembled with valve core and grounding device.

Packing List:

  • Dome closure:1set
  • Hanging set:1set(optional:pole mounting,wall mounting or aerial)
  • Heat shrinkable tube:2~144pcs(according to the real capacity of the closure)
  • Hose clamp13~19: 8pcs
  • Shrinkable tube65/19-150: 1pc
  • Shrinkable tube28/6-150:6pc
  • Manual:1pc
  • Certificate of Approval:1pc

Vertical DOME Iber Optic Enclosures Outdoor 4 In 4 Out Aerial / Pole / Wall MountVertical DOME Iber Optic Enclosures Outdoor 4 In 4 Out Aerial / Pole / Wall Mount
