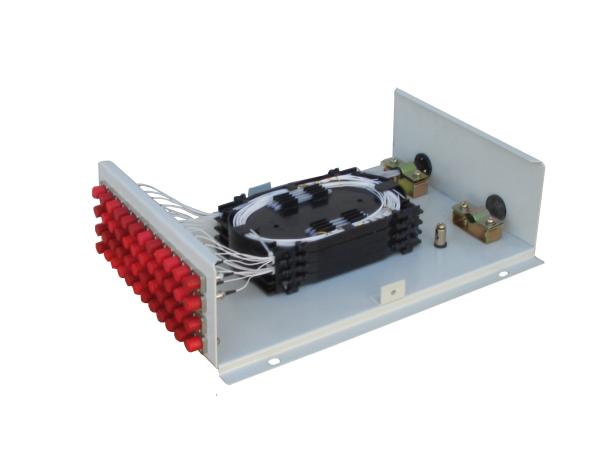

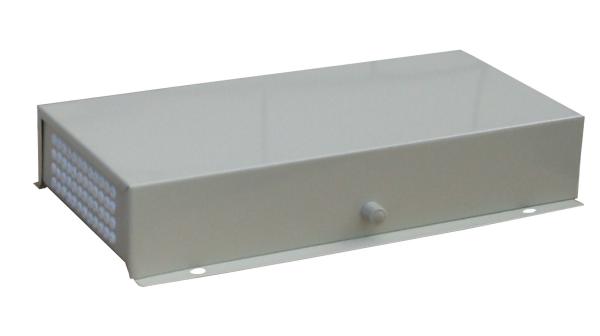

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
Carton box
Material :
Cold rolled steel sheet
Application :
Indoor wall mounted
Max capacity :
48 ports
Connector :
SC,FC,LC,ST
Description

GPZ/48A series can be applied in the straight through or branch connection of indoor cable;Available for the distribution and terminal connection of various kinds of optional fiber system;fit for wall mounted.

Application
Fiber Optic Communication System
FTTH Project
LAN Terminal
CATV
Features
1~48 adapters available
Reliable Cable fixing, Ground protection devices
Suitable for 1~48pcs ST, SC, FC, LC adapters
Upper and lower plate structure makes installing easily. Wall mount installation
Type Size(mm) W*D*H Max capacity Cable ports Outer carton dimension Outer cartion weight
GPZ/48A-12 183*330*70 12 2 in,12 out 430*370*470/10pcs 20
GPZ/48A-24 183*330*100 24 2 in, 24 out 430*370*470/8pcs 18
GPZ/48A-48 220*330*100 48 2 in, 48 out 430*600*510/8pcs 20
GPZ/S-8 132*285*46 8 2 in, 8 out 630*330*340/20pcs 11.5
GPZ/S-12 132*285*46 12 2 in, 12 out 630*330*340/20pcs 11.5
GPZ-WL-8 140*260*40 8 2 in, 8 out 630*330*340/20pcs 21
GPZ-WLA-8 115*220*45 8 2 in, 8 out 550*520*320/40pcs 21.6

Type Size(mm) W*D*H Max Capacity Outer carton diameter Outer carton weight
GPZ/WLB-JY-CQ12 90*153*30 12 500*330*200/50pcs 16.5
GPZ/WLA-JY-CQ12 115*175*35 12 670*410*280/50pcs 21.3
GPZ/WLA-CQ12 110*220*40 12 550*520*320/40pcs 21.6
GPZ/G 120*300*46 24 630*330*340/20pcs 22.5
GPZ/48A 183*330*70 48 430*370*470/10pcs 20

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size

12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size12 24 48 port Fiber Optic Termination Box FC SC ST connectors metal compact size
